Fuji Addy 27.5 1.2 2020

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
Fuji Addy 27.5 1.2 2020

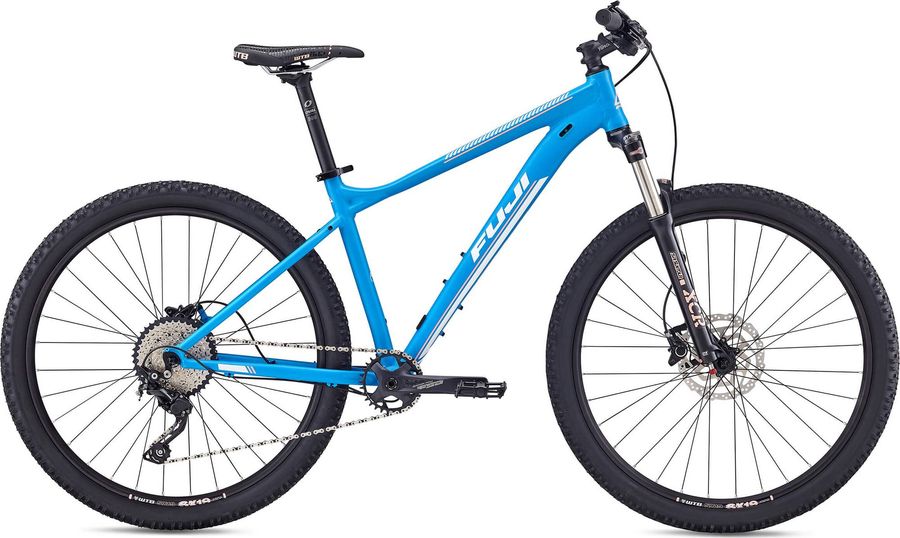

About the Fuji Addy 27.5 1.2 2020

The Fuji Addy 27.5 1.2 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes e remote lockout.

Features

The Fuji Addy 27.5 1.2 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Fuji Performance Grip Lock On
Pedals
Alloy platform
Components
Steam
Oval Concepts 313, alloy, +/-7°
Saddle
WTB Koda Comp
Headset
1 1/8" cartridge bearings
Seatpost
Oval Concepts 300, alloy, 30.9mm
Handlebar
Oval Concepts riser bar, alloy, 15mm rise
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA Gamma Pro, 30T
Shifter
Shimano Deore, Rapid Fire, 1 x 10-speed
Bottom bracket
FSA Mega EXO, threaded
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Front suspension
SR Suntour XCR 32 AIR
Wheels
Rims
WTB SX19 rims 32H, Shimano HB-TX505 front, FH-TX505 rear hub, stainless black spokes
Tires
WTB Ranger Comp, 27.5" x 2.25", 27tpi

Geometry

Size XS SM MD LG
a
Seat tube length
330,0
350,0
430,0
483,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
548,0
568,0
588,0
618,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
85,0
91,0
88,0
85,0
h
Wheelbase
1038,4
1058,9
1079,5
1110,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
586,9
615,0
615,0
615,0
l
Reach
368,1
385,2
402,3
429,5
m
Standover height
600,5
619,1
688,3
713,4
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
614,0
635,0
655,0
686,0
