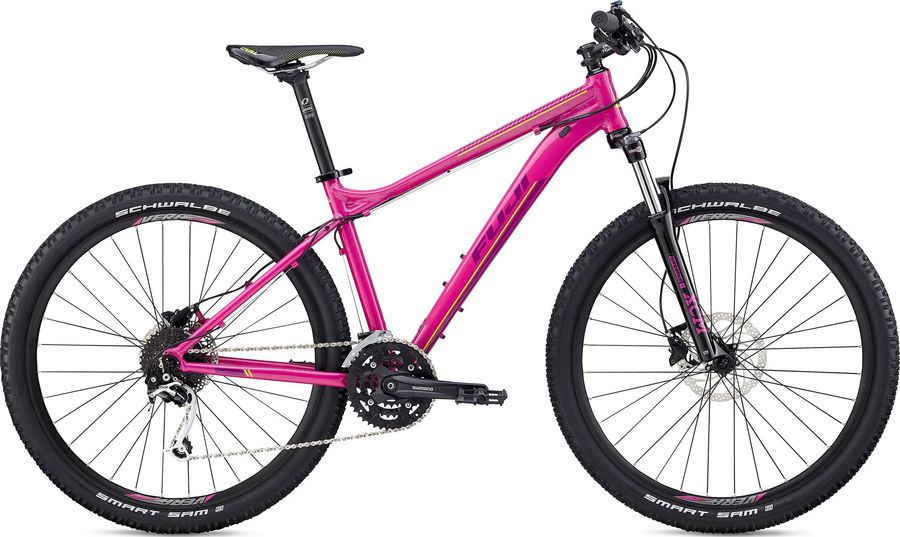

Fuji Addy 27.5 1.3 2018
The Fuji Addy 27.5 1.3 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,06 kg
Front travel
100mm
About the Fuji Addy 27.5 1.3 2018
The Fuji Addy 27.5 1.3 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 14,06 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Oval Concepts 620, ergo shape, single lock on, single density Kraton
|
|---|---|
|
Pedals
|
Resin platform
|
|
Steam
|
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
|
|---|---|
|
Saddle
|
Oval Concepts 438 Women's, steel rail
|
|
Headset
|
FSA NO. 10, 1 1/8" semi-integrated, caged bearings
|
|
Seatpost
|
Oval Concepts, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
Shimano M315, hydraulic disc
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano Alivio Octalink, 44/32/22T
|
|---|---|
|
Shifter
|
Shimano Alivio, Rapid Fire, 9-speed
|
|
Bottom bracket
|
Shimano Octalink, sealed bearing
|
|
Rear derailleur
|
Shimano Deore XT, 9-speed
|
|
Front derailleur
|
Shimano Alivio, 34.9mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC X9
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, Fuji A1-SL alloy rear triangle w/ post disc mount, cold-forged dropout and replaceable hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCM-RL
|
|
Rims
|
Vera Terra DPD22 rims 32h, Shimano TX-505 front, Shimano TX-505 rear disc hubs, 14g stainless black spokes
|
|---|---|
|
Tires
|
Schwalbe Smart Sam, 27.5" x 2.1", 50tpi
|
Geometry
| Size | 13" | 15" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
350,0
|
430,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
548,0
|
568,0
|
588,0
|
618,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
91,0
|
88,0
|
85,0
|
|
h
Wheelbase
|
1038,4
|
1058,9
|
1079,5
|
1110,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
586,9
|
615,0
|
615,0
|
615,0
|
|
l
Reach
|
368,1
|
385,2
|
402,3
|
429,5
|
|
m
Standover height
|
600,5
|
619,1
|
688,3
|
713,4
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
614,0
|
635,0
|
655,0
|
686,0
|
