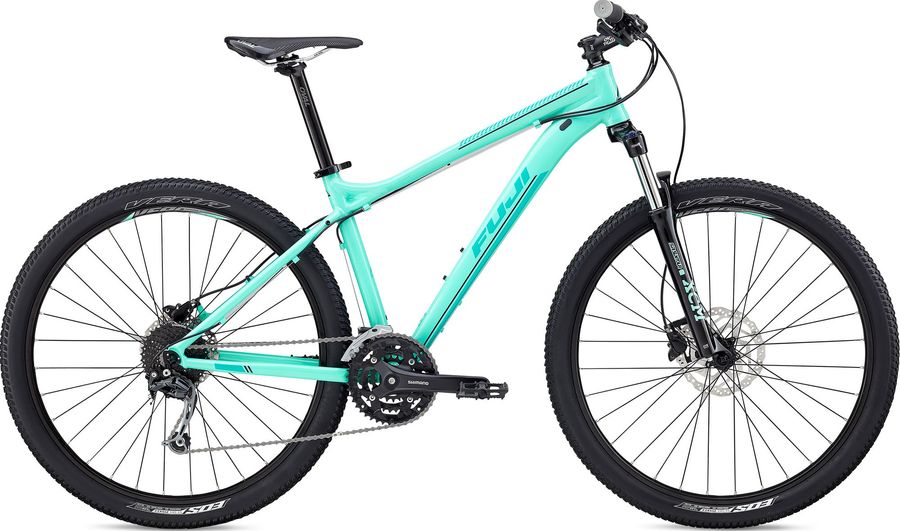

Fuji Addy 27.5 1.5 2018
The Fuji Addy 27.5 1.5 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,07 kg
Front travel
100mm
About the Fuji Addy 27.5 1.5 2018
The Fuji Addy 27.5 1.5 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 14,07 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Oval Concepts 400, dual density Kraton
|
|---|---|
|
Pedals
|
Resin platform
|
|
Steam
|
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
|
|---|---|
|
Saddle
|
Oval Concepts 438 Women's, steel rail
|
|
Headset
|
FSA NO 10, 1 1/8" semi-integrated, caged bearings
|
|
Seatpost
|
Oval Concepts, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
Shimano M315, hydraulic disc
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano Acera, alloy, 44/32/22T
|
|---|---|
|
Shifter
|
Shimano Altus, Rapid Fire, 9-speed
|
|
Bottom bracket
|
VP-BC73, sealed cartridge bearing
|
|
Front derailleur
|
Shimano Altus, 34.9mm
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Chain
|
KMC Z99
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, Fuji A1-SL alloy rear triangle w/ post disc mount, cold-forged dropout and replaceable hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
Vera Terra DPD16 rims 32h, Shimano TX-505 front, Shimano TX-505 rear disc hubs, 14g stainless black spokes
|
|---|---|
|
Tires
|
Vera Eos, 27.5" x 2.2", 30tpi
|
Geometry
| Size | 13" | 15" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
350,0
|
430,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
548,0
|
568,0
|
588,0
|
618,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
91,0
|
88,0
|
85,0
|
|
h
Wheelbase
|
1038,4
|
1058,9
|
1079,5
|
1110,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
586,9
|
615,0
|
615,0
|
615,0
|
|
l
Reach
|
368,1
|
385,2
|
402,3
|
429,5
|
|
m
Standover height
|
600,5
|
619,1
|
688,3
|
713,4
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
614,0
|
635,0
|
655,0
|
686,0
|
