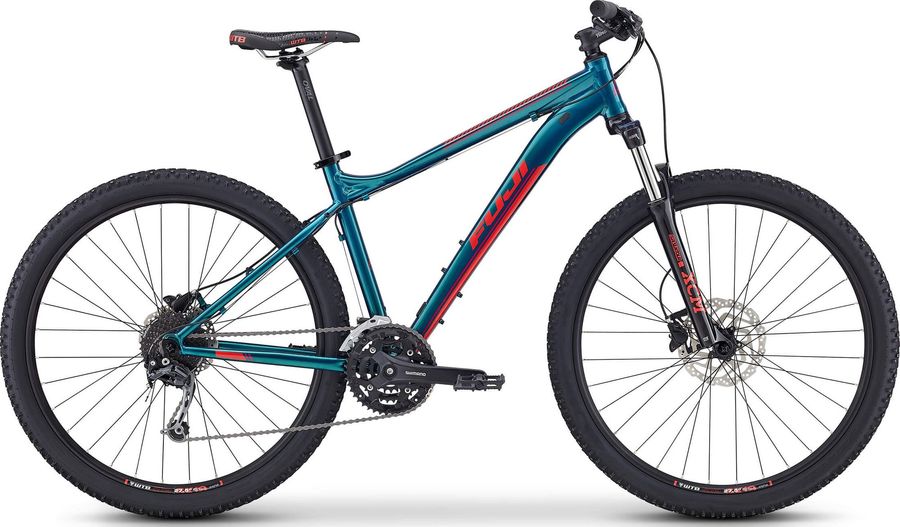

Fuji Addy 27.5 1.5 2019

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
Fuji Addy 27.5 1.5 2019

About the Fuji Addy 27.5 1.5 2019

The Fuji Addy 27.5 1.5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes.

Features

The Fuji Addy 27.5 1.5 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Fuji Performance Grip
Pedals
Resin platform
Components
Steam
Oval Concepts 313, alloy, +/-7°
Saddle
WTB Koda Comp
Headset
1 1/8" sealed bearings
Seatpost
Oval Concepts, alloy, 30.9mm
Handlebar
Oval Concepts riser bar, alloy, 15mm rise
Brake lever
Shimano MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano Acera, 44/32/22T
Shifter
Shimano Altus, Rapid Fire, 3 x 9-speed
Bottom bracket
Sealed cartridge bearing
Front derailleur
Shimano Altus
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC Z9
Frameset
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Front suspension
SR Suntour XCM HLO
Wheels
Rims
WTB SX19 rims 32H, Shimano HB-TX505 front, FH-TX505 rear hub, stainless black spokes
Tires
WTB Ranger Comp, 27.5" x 2.25", 27tpi

Geometry

Size XS SM MD LG
a
Seat tube length
330,0
350,0
430,0
483,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
548,0
568,0
588,0
618,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
85,0
91,0
88,0
85,0
h
Wheelbase
1038,4
1058,9
1079,5
1110,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
586,9
615,0
615,0
615,0
l
Reach
368,1
385,2
402,3
429,5
m
Standover height
600,5
619,1
688,3
713,4
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
614,0
635,0
655,0
686,0
