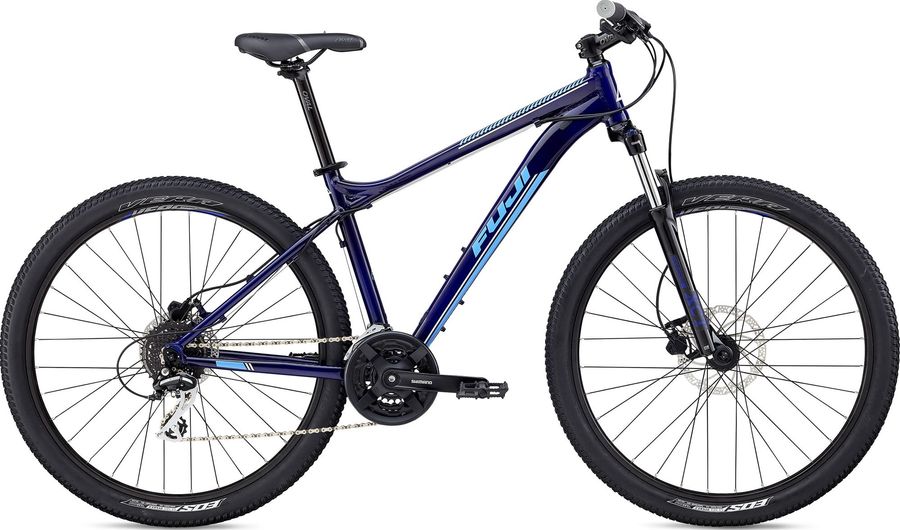

Fuji Addy 27.5 1.7 2018
The Fuji Addy 27.5 1.7 2018 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,23 kg
Front travel
100mm
About the Fuji Addy 27.5 1.7 2018
The Fuji Addy 27.5 1.7 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 14,23 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Oval Concepts 400, dual density Kraton
|
|---|---|
|
Pedals
|
Resin platform
|
|
Steam
|
Oval Concepts, forged aluminum, +/-10°
|
|---|---|
|
Saddle
|
Oval Concepts Sport Women's, steel rail
|
|
Headset
|
FSA NO 10, 1 1/8" semi-integrated, caged bearings
|
|
Seatpost
|
Oval Concepts, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
Tektro HD-M285, hydraulic disc
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Shimano Tourney, 42/34/24T
|
|---|---|
|
Shifter
|
Shimano Altus, Rapid Fire, 8-speed
|
|
Bottom bracket
|
VP-BC73, sealed cartridge bearing
|
|
Front derailleur
|
Shimano Tourney, 34.9mm
|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Chain
|
KMC HV700
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, Fuji A1-SL alloy rear triangle w/ post disc mount, cold-forged dropout and replaceable hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCT HLO
|
|
Rims
|
Vera Terra DPD16 rims 32h, Formula DC-20 front, DC-22 rear disc hubs, 14g black spokes
|
|---|---|
|
Tires
|
Vera Eos, 27.5" x 2.2", 30tpi
|
Geometry
| Size | 13" | 15" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
350,0
|
430,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
548,0
|
568,0
|
588,0
|
618,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
91,0
|
88,0
|
85,0
|
|
h
Wheelbase
|
1038,4
|
1058,9
|
1079,5
|
1110,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
586,9
|
615,0
|
615,0
|
615,0
|
|
l
Reach
|
368,1
|
385,2
|
402,3
|
429,5
|
|
m
Standover height
|
600,5
|
619,1
|
688,3
|
713,4
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
614,0
|
635,0
|
655,0
|
686,0
|
