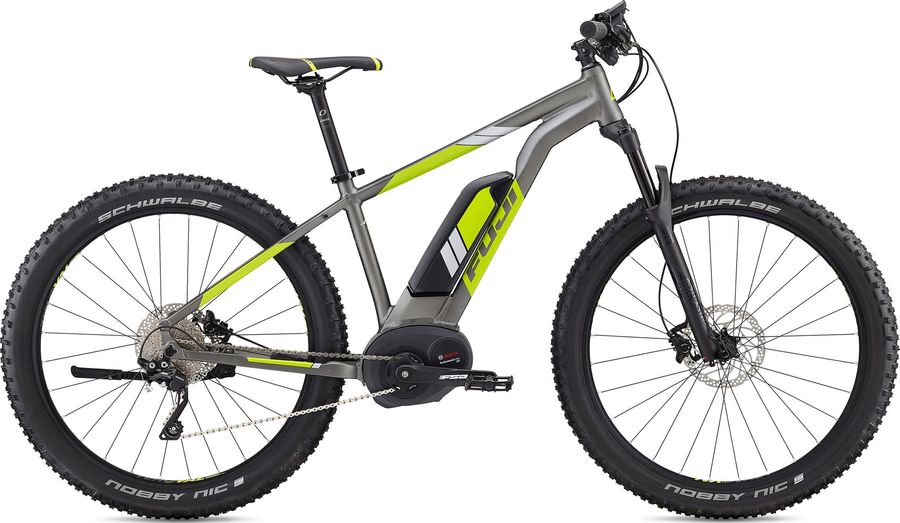

Fuji Ambient 27.5+ 1.3 2018
The Fuji Ambient 27.5+ 1.3 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
21,07 kg
Front travel
120mm
About the Fuji Ambient 27.5+ 1.3 2018
The Fuji Ambient 27.5+ 1.3 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 21,07 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
Oval Concepts 634, large diameter pads, single lock on, dual density
|
|---|---|
|
Pedals
|
Alloy platform
|
|
Remote
|
Bosch Intuvia w/ mount
|
|
Steam
|
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
|
|---|---|
|
Saddle
|
Oval Concepts 300, steel rail
|
|
Battery
|
Bosch Power Tube 500Wh w/ charger
|
|
Headset
|
FSA NO.42B, 1 1/8" - 1.5", caged bearings
|
|
Seatpost
|
Oval Concepts 300, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts 205 riser bar, 6061 alloy, +/- 5mm rise, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
Shimano MT500, hydraulic disc
|
|
Brakes
|
Shimano BR-MT500
Hydraulic disc brake
2 piston
|
|
SM-RT56* |
|
|
Crankset
|
FSA CK-745 / IS / 15T / w/ chain guard
|
|---|---|
|
Motor
|
Bosch Performance CX mid-motor, 250W rated power
|
|
Shifter
|
Shimano Deore, Rapid Fire, 10-speed
|
|
Bottom bracket
|
Bosch System ISIS Drive
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Rear derailleur
|
Shimano Deore XT RD-M781
238 g
SGS
10s
|
|
|
|
|
Frame
|
Fuji A2-SL alloy front and rear triangle w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger
|
|---|---|
|
Front suspension
|
RockShox Judy Gold RL
Solo Air
|
|
|
|
|
Rims
|
Oval Concepts 600AM Boost Plus, Centerlock hubs, Boost 110x15mm & 148x12mm thru axles, 27.5"+ 28H rims
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic Performance, 27.5" x 3.0", 67tpi, folding
|
Geometry
| Size | 17" | 19" | 21" |
|---|---|---|---|
|
a
Seat tube length
|
432,0
|
483,0
|
533,4
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
588,0
|
600,0
|
628,0
|
|
d
Head tube length
|
120,0
|
130,0
|
130,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
76,0
|
76,0
|
76,0
|
|
h
Wheelbase
|
1153,6
|
1166,2
|
1194,4
|
|
i
Chainstay length
|
488,0
|
488,0
|
488,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
625,2
|
634,6
|
634,6
|
|
l
Reach
|
396,4
|
405,6
|
433,4
|
|
m
Standover height
|
736,0
|
774,0
|
817,0
|
|
x
Bottom bracket height
|
300,0
|
300,0
|
300,0
|
|
y
Front center
|
671,0
|
684,0
|
712,0
|
