Fuji Auric 27.5 1.5 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

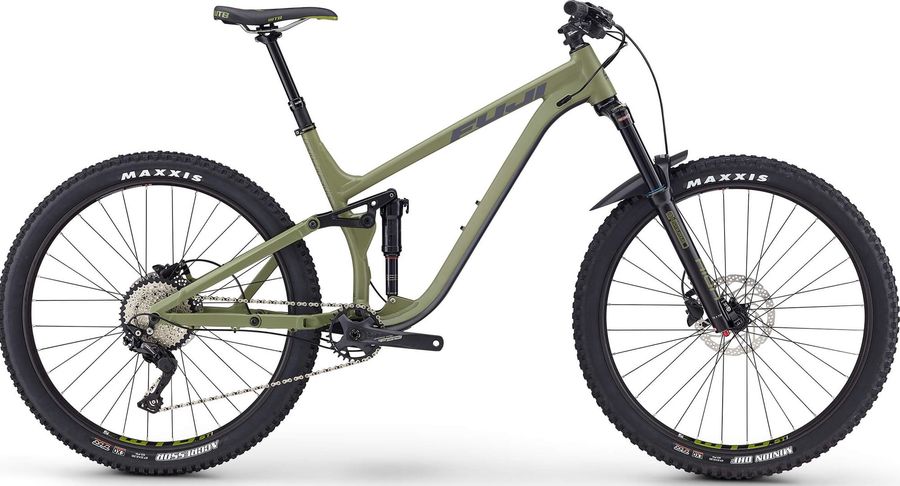

Fuji Auric 27.5 1.5 2019

About the Fuji Auric 27.5 1.5 2019

The Fuji Auric 27.5 1.5 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fuji Auric 27.5 1.5 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
WTB Waffel, Lock on
Components
Steam
Race Face Ride, alloy, +6° rise
Saddle
WTB Volt Comp
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seatpost
KS Rage-i dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Westy Lever
Handlebar
Race Face Ride Riser Bar, alloy, 10mm rise, 760mm
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA Gamma Pro, 30T
Shifter
Shimano Deore, Rapid Fire, 1 x 10-speed
Bottom bracket
FSA Mega EXO, threaded
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 130mm
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i29 TCS 2.0 32H, Shimano MT400 front hub, MT400 rear hub, stainless black spokes
Tires
Maxxis Minion DHF, 27.5" x 2.30", 60tpi, EXO, Tubeless Ready, folding, Maxxis Aggressor, 27.5" x 2.30", 60tpi, EXO, Tubeless Ready, folding

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
458,0
495,0
b
Seat tube angle
76,0º
75,5º
75,0º
75,0º
c
Top tube length
591,4
619,1
647,0
669,5
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
123,0
123,0
118,0
123,0
h
Wheelbase
1159,5
1183,6
1212,6
1231,7
i
Chainstay length
422,2
422,2
422,2
422,2
j
Bottom bracket drop
13,0
13,0
13,0
13,0
k
Stack height
576,0
585,1
594,2
603,4
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
740,4
739,1
746,1
750,7
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
738,0
762,0
791,0
810,0
