BikeWise

Fuji Auric LT 27.5 1.1 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

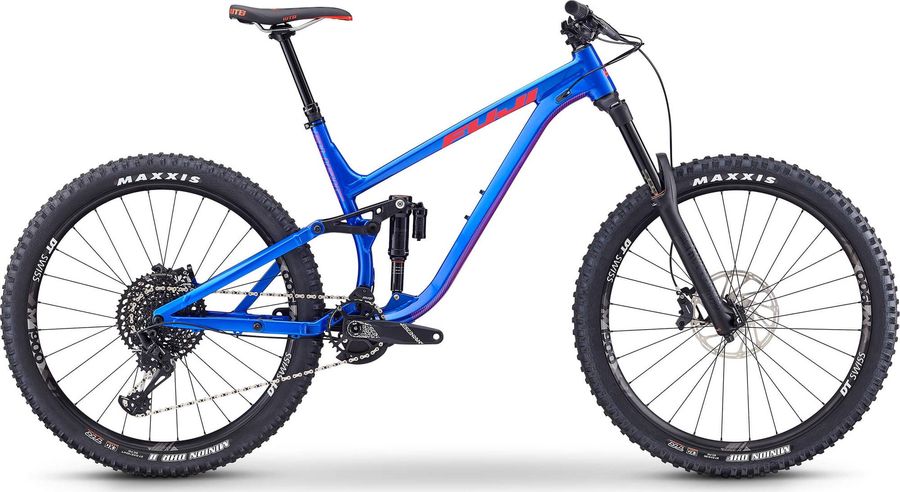

Fuji Auric LT 27.5 1.1 2020

About the Fuji Auric LT 27.5 1.1 2020

The Fuji Auric LT 27.5 1.1 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fuji Auric LT 27.5 1.1 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
WTB Waffel, Lock on
Components
Steam
Race Face Aeffect R, alloy, +6° rise
Saddle
WTB Volt Comp
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seatpost
KS LEV SI dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Southpaw Lever
Handlebar
Race Face Aeffect R Riser Bar, alloy, 20mm rise, 780mm
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant, 32T
Shifter
SRAM GX Eagle, 1 x 12-speed
Bottom bracket
SRAM DUB, threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 160mm
Rear suspension
RockShox Super Deluxe RT3
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss M1900 Spline 30 wheelset, 28H
Tires
Maxxis Minion DHF, 27.5" x 2.50" WT, 3C Max Terra, 60tpi, EXO, Tubeless Ready, folding, front, Maxxis Minion DHR II, 27.5" x 2.40" WT, 3C Max Terra, 60tpi, EXO, Tubeless Ready, folding, rear

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
458,0
495,0
b
Seat tube angle
76,0º
75,5º
75,0º
75,0º
c
Top tube length
593,0
620,8
648,7
671,1
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
37,0
37,0
37,0
37,0
g
Trail
136,0
136,0
136,0
136,0
h
Wheelbase
1197,8
1222,3
1246,7
1271,2
i
Chainstay length
422,3
422,3
422,3
422,3
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
582,6
591,5
600,5
609,4
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
736,0
747,8
748,8
756,2
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
776,0
800,0
825,0
849,0
