Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,99 kg
Front travel
120mm

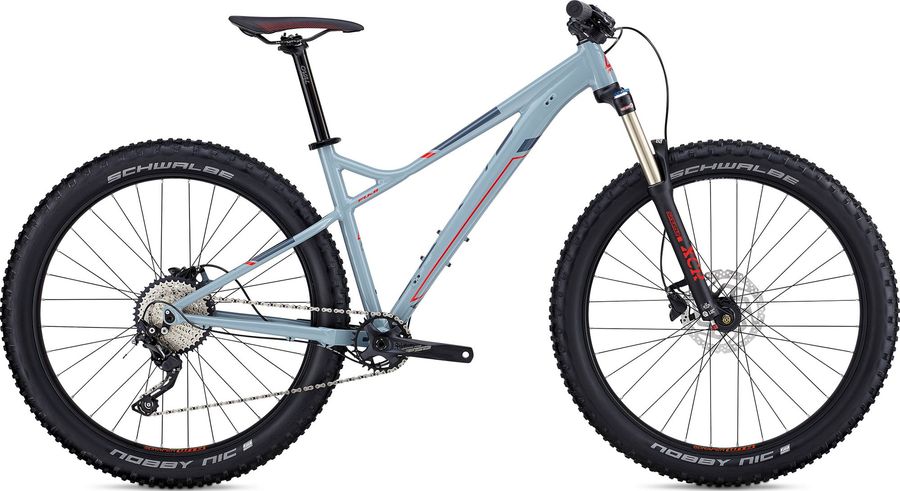

About the Fuji Bighorn 1.7 2018
The Fuji Bighorn 1.7 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,99 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
Grip
|
Oval Concepts 634, large diameter pads, single lock on, dual density
|
---|
Steam
|
Oval Concepts 600AM, 3D-forged 6061 stem body, 0°
|
---|---|
Saddle
|
Oval Concepts 238 trail, steel rail
|
Headset
|
FSA NO.42, 1 1/8" - 1.5", caged bearings
|
Seatpost
|
Oval Concepts, 6061 alloy, 30.9mm diameter
|
Handlebar
|
Oval Concepts 205 riser bar, 6061 alloy, ± 5mm rise, 9° sweep, 31.8mm clamp
|
Brake lever
|
Shimano M315, hydraulic disc
|
Brakes
|
Shimano Altus BR-M315
|
Crankset
|
FSA Gamma Pro, 30T
|
---|---|
Cassette
|
New Shimano
|
Shifter
|
Shimano Deore, Rapid Fire, 10-speed
|
Bottom bracket
|
FSA Mega EXO
|
Rear derailleur
|
Shimano Deore shadow plus, 10-speed
|
Chain
|
KMC X10
|
Frame
|
Fuji A6-SL super-butted alloy front and rear triangle w/ PowerCurve down tube, smooth welds, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger
|
---|---|
Front suspension
|
SR Suntour XCR-34
|
Rims
|
WTB Scraper i35 32H rims, Formula DC-511 110x15 Boost front, DC-1248 148x12mm Boost rear 6-bolt hubs
|
---|---|
Tires
|
Schwalbe Nobby Nic Performance, 27.5" x 3.0", 67tpi, folding
|
Rear hub
|
Front: Formula DC-511, 110mm x 15mm:, Rear:Formula DC-1248, 148mm x 12mm
|
Front hub
|
Front: Formula DC-511, 110mm x 15mm:, Rear:Formula DC-1248, 148mm x 12mm
|
Geometry
Size | 15" | 17" | 19" | 21" | 23" |
---|---|---|---|---|---|
a
Seat tube length
|
381,0
|
432,0
|
465,0
|
513,0
|
543,0
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
c
Top tube length
|
583,0
|
608,0
|
633,0
|
658,0
|
678,0
|
d
Head tube length
|
90,0
|
100,0
|
100,0
|
110,0
|
120,0
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
g
Trail
|
92,0
|
92,0
|
92,0
|
92,0
|
83,0
|
h
Wheelbase
|
1123,9
|
1150,1
|
1175,1
|
1201,3
|
1231,5
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
55,0
|
55,0
|
k
Stack height
|
610,0
|
619,2
|
619,2
|
628,5
|
637,7
|
l
Reach
|
407,5
|
429,9
|
454,9
|
477,2
|
494,6
|
m
Standover height
|
631,4
|
667,0
|
683,4
|
685,1
|
707,3
|
x
Bottom bracket height
|
300,0
|
300,0
|
300,0
|
300,0
|
300,0
|
y
Front center
|
698,0
|
724,0
|
749,0
|
775,0
|
805,0
|
