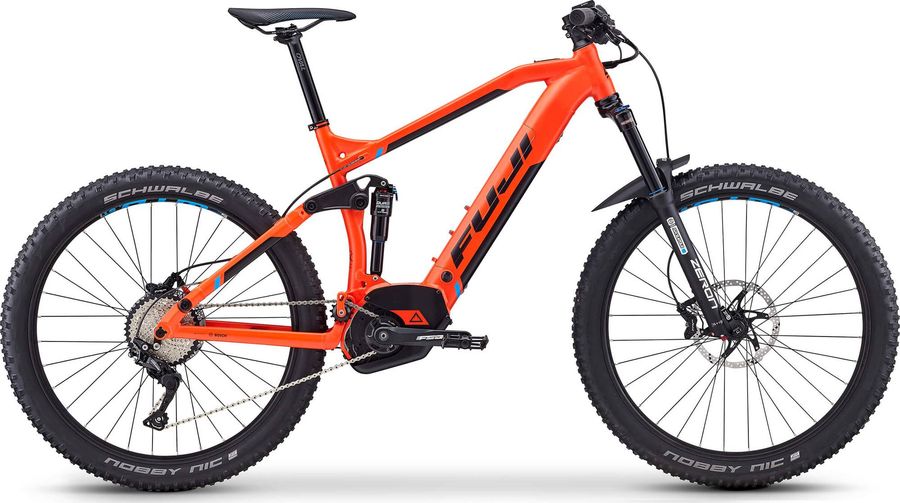

Fuji Blackhill Evo LT 27.5+ 1.5 USA 2020
The Fuji Blackhill Evo LT 27.5+ 1.5 USA 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
About the Fuji Blackhill Evo LT 27.5+ 1.5 USA 2020
The Fuji Blackhill Evo LT 27.5+ 1.5 USA 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Oval Concepts 234 Trail, single density Kraton
|
|---|---|
|
Remote
|
Bosch Purion
|
|
Steam
|
Oval Concepts 600AM, 3D-forged 6061 alloy, 0 degree, 31.8mm clamp
|
|---|---|
|
Saddle
|
Oval Concepts 238 Trail, steel rail
|
|
Battery
|
Bosch Power Tube 500Wh w/ charger
|
|
Headset
|
FSA NO.9M, 1 1/8" - 1.5", sealed cartridge bearings
|
|
Seatpost
|
Oval OE, 6061 alloy micro adjust, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9 degree sweep, 31.8mm clamp
|
|
Brake lever
|
TRP Slate T4, hydraulic disc 2 finger levers
|
|
Brakes
|
TRP Slate T4
|
|
Crankset
|
FSA CK-745/IS / 14T / w/ chainguard
|
|---|---|
|
Motor
|
Bosch Performance CX, mid-motor, 250W rated power, 20mph or 25kph maximum assist
|
|
Shifter
|
Shimano Deore M6000, Rapid Fire
|
|
Bottom bracket
|
Bosch System ISIS drive
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC 10v
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Fuji A6-SL alloy front and rear triangle w/ down tube for integrated Bosch Power Tube 500Wh battery, custom Bosch motor cover, 4-bar suspension system, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148 x 12mm cold-forged dropout and replaceable hanger
|
|---|---|
|
Front suspension
|
SR Suntour Zeron 35
|
|
Rear suspension
|
SR Suntour DUAir LOR8
|
|
Rims
|
Shimano MT400-Boost CL 15mm thru axle disc, 32H, front / Shimano MT400-Boost CL 12mm thru axle disc, 32H, rear, 14/15g stainless steel spokes, WTB STp i35 TCS double wall rims
|
|---|---|
|
Tires
|
Schwalbe Nobby Nick Performance, folding, 27.5 x 2.8", 67tpi
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
432,0
|
483,0
|
534,0
|
584,0
|
|
b
Seat tube angle
|
73,3º
|
73,3º
|
73,3º
|
73,3º
|
73,3º
|
|
c
Top tube length
|
585,0
|
615,0
|
635,0
|
655,0
|
670,0
|
|
d
Head tube length
|
110,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
92,0
|
92,0
|
92,0
|
92,0
|
99,0
|
|
h
Wheelbase
|
1186,0
|
1216,0
|
1238,6
|
1258,4
|
1274,0
|
|
i
Chainstay length
|
480,0
|
480,0
|
480,0
|
480,0
|
486,0
|
|
j
Bottom bracket drop
|
10,0
|
10,0
|
10,0
|
10,0
|
10,0
|
|
k
Stack height
|
610,0
|
611,0
|
620,0
|
629,0
|
638,0
|
|
l
Reach
|
402,0
|
432,3
|
450,7
|
466,7
|
479,0
|
|
m
Standover height
|
785,0
|
791,0
|
785,0
|
790,0
|
830,0
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
706,0
|
736,0
|
759,0
|
779,0
|
788,0
|
