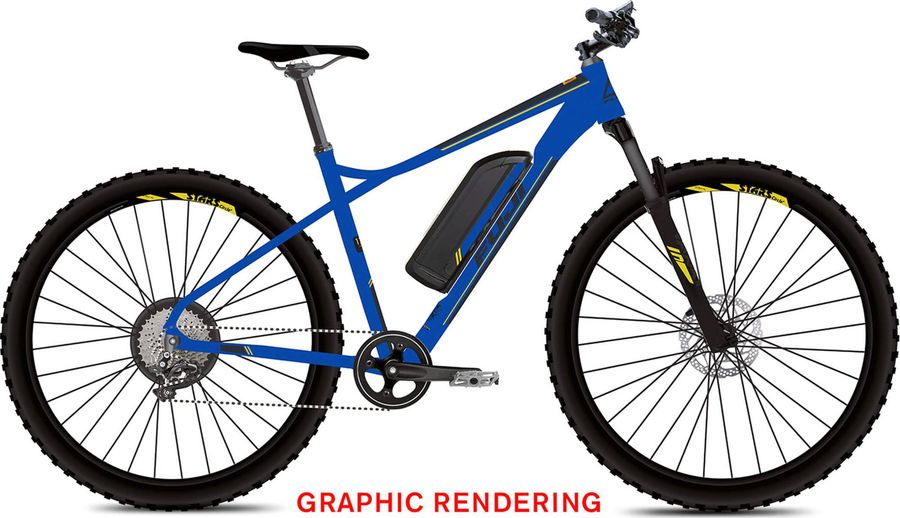

Fuji E-Nevada 27.5 2.1 USA 2020
The Fuji E-Nevada 27.5 2.1 USA 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Fuji E-Nevada 27.5 2.1 USA 2020
The Fuji E-Nevada 27.5 2.1 USA 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Oval Concepts 234 Trail, single density Kraton
|
|---|---|
|
Pedals
|
Nylon platform, chromoly axle
|
|
Remote
|
Bafang 5 mode LED display w/ walk assist
|
|
Steam
|
6061 aluminum, +/- 6 degree rise, 31.8mm clamp
|
|---|---|
|
Saddle
|
Oval Concepts 300P, steel rail
|
|
Battery
|
Fuji Power Pack 417Wh w/ 2A charger
|
|
Headset
|
1 1/8", Zero Stack, caged bearings
|
|
Seatpost
|
Oval Concepts, 6061 alloy micro adjust, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts riser bar, 6061 alloy, 15mm rise, 5 degree sweep, 31.8mm clamp
|
|
Brake lever
|
Shimano MT200 hydraulic disc 3 finger levers
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Shimano TY301, 48/38/28T, w/ chainring guard
|
|---|---|
|
Motor
|
Bafang H400B rear hub motor, 250W rated power, 20mph maximum assist
|
|
Shifter
|
Shimano Altus M310, Rapid Fire
|
|
Bottom bracket
|
Bafang cadence sensor bottom bracket
|
|
Front derailleur
|
Shimano Tourney TY710
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC X8
|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Front suspension
|
HL VASA 28S 525 AMS 27.5, travel 100mm
|
|---|---|
|
Frame
|
Fuji A1-SL Alloy front and rear triangle w/ mounting for down tube battery, 1 1/8" head tube, post disc mount, replaceable hanger
|
|
Rims
|
Shimano TX505 CL disc, 36H, front / Bafang motor hub, 6 bolt disc, 36H, rear, stainless steel spokes, aluminum double wall rims
|
|---|---|
|
Tires
|
Vera Eos, 27.5" x 2.2", 30tpi
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
386,0
|
430,0
|
483,0
|
532,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
573,0
|
593,0
|
623,0
|
643,0
|
|
d
Head tube length
|
120,0
|
115,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
79,0
|
78,0
|
86,0
|
80,0
|
|
h
Wheelbase
|
1086,0
|
1105,0
|
1135,0
|
1156,0
|
|
i
Chainstay length
|
453,0
|
453,0
|
453,0
|
453,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
606,0
|
593,0
|
621,0
|
619,0
|
|
l
Reach
|
385,0
|
408,0
|
435,0
|
452,0
|
|
m
Standover height
|
662,0
|
681,0
|
732,0
|
771,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
637,0
|
656,0
|
686,0
|
707,0
|
