Fuji Nevada 27.5 1.9 2019
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

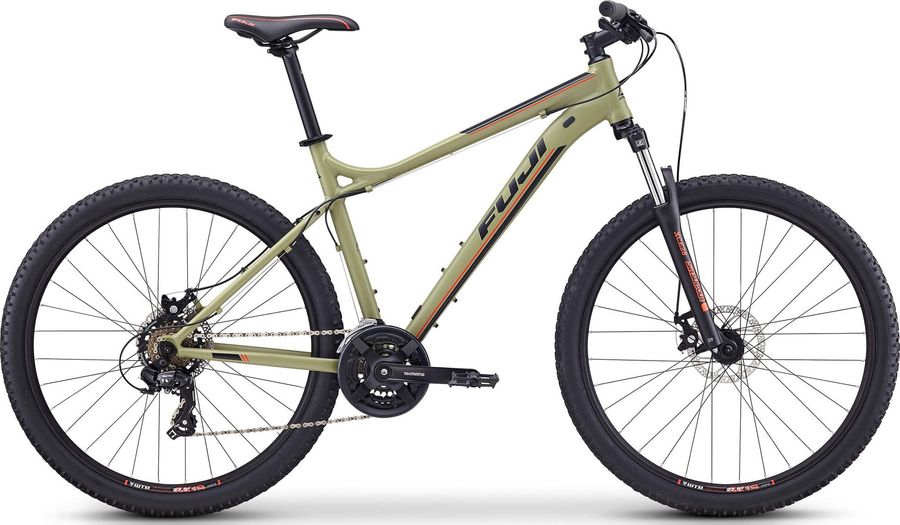

About the Fuji Nevada 27.5 1.9 2019
The Fuji Nevada 27.5 1.9 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Grip
|
Fuji Performance Grip
|
|---|---|
|
Pedals
|
Resin platform
|
|
Steam
|
Fuji, forged aluminum, +/-6°
|
|---|---|
|
Saddle
|
Fuji Performance Saddle
|
|
Headset
|
1 1/8" sealed bearings
|
|
Seatpost
|
Fuji, alloy, 30.9mm
|
|
Handlebar
|
Fuji riser bar, alloy, 15mm rise
|
|
Brake lever
|
Shimano EF41
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano Tourney, 42/34/24T
|
|---|---|
|
Shifter
|
Shimano EF41, EZ Fire, 3 x 7-speed
|
|
Bottom bracket
|
Sealed cartridge bearing
|
|
Front derailleur
|
Shimano Tourney
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC HV500
|
|
Cassette
|
Shimano MF-TZ500
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
WTB SX19 rims 32H, Formula DC-20 front, DC-31 rear hubs, black spokes
|
|---|---|
|
Tires
|
WTB Ranger Comp, 27.5" x 2.25", 27tpi
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
350,0
|
430,0
|
483,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
548,0
|
568,0
|
588,0
|
618,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
91,0
|
88,0
|
85,0
|
|
h
Wheelbase
|
1038,4
|
1058,9
|
1079,5
|
1110,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
586,9
|
615,0
|
615,0
|
615,0
|
|
l
Reach
|
368,1
|
385,2
|
402,3
|
429,5
|
|
m
Standover height
|
600,5
|
619,1
|
688,3
|
713,4
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
614,0
|
635,0
|
655,0
|
686,0
|
