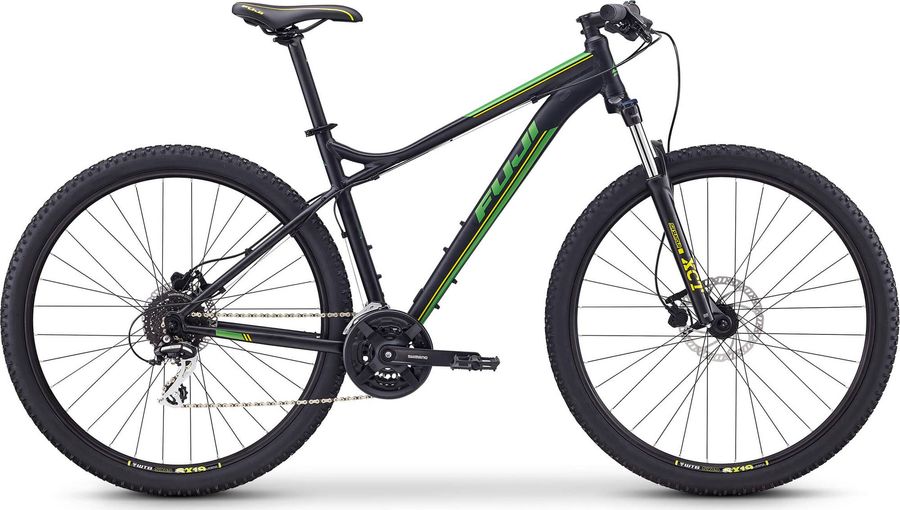

Fuji Nevada 29 1.7 2020
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
About the Fuji Nevada 29 1.7 2020
The Fuji Nevada 29 1.7 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Fuji Performance Grip
|
|---|---|
|
Pedals
|
Resin platform
|
|
Steam
|
Fuji, forged aluminum, +/-6°
|
|---|---|
|
Saddle
|
Fuji Performance Saddle
|
|
Headset
|
1 1/8" sealed bearings
|
|
Seatpost
|
Fuji, alloy, 30.9mm
|
|
Handlebar
|
Fuji flat bar, alloy, 710mm
|
|
Brake lever
|
Tektro HD-M275
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Shimano Tourney, 42/34/24T
|
|---|---|
|
Shifter
|
Shimano Altus, Rapid Fire, 3 x 8-speed
|
|
Bottom bracket
|
Sealed cartridge bearing
|
|
Front derailleur
|
Shimano Tourney
|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Chain
|
KMC HV700
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
|
|---|---|
|
Front suspension
|
SR Suntour XCT 30 HLO
|
|
Rims
|
WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hubs, black spokes
|
|---|---|
|
Tires
|
WTB Ranger Comp, 29" x 2.25", 27tpi
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
483,0
|
530,0
|
580,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
577,0
|
597,0
|
622,0
|
637,0
|
657,0
|
|
d
Head tube length
|
100,0
|
110,0
|
115,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
87,0
|
87,0
|
87,0
|
87,0
|
87,0
|
|
h
Wheelbase
|
1071,5
|
1092,0
|
1117,3
|
1132,6
|
1152,8
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
621,9
|
631,3
|
636,0
|
640,7
|
650,1
|
|
l
Reach
|
386,1
|
403,2
|
426,7
|
440,3
|
457,4
|
|
m
Standover height
|
649,7
|
694,8
|
724,0
|
755,2
|
784,3
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
646,0
|
667,0
|
692,0
|
707,0
|
727,0
|
