Fuji Outland 29 1.1 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

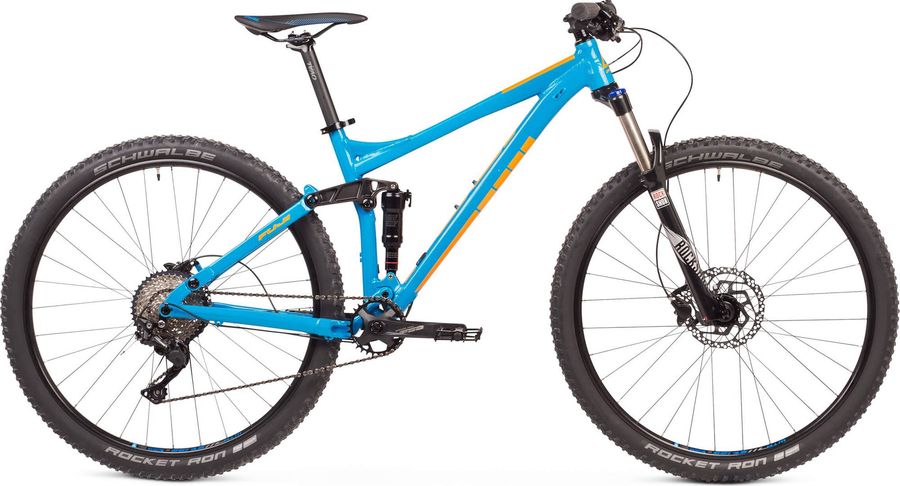

Fuji Outland 29 1.1 2018

About the Fuji Outland 29 1.1 2018

The Fuji Outland 29 1.1 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Fuji Outland 29 1.1 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Oval Concepts 634, large diameter pads, single lock on, dual density
Pedals
Alloy platform
Components
Steam
Oval Concepts 313, 3D-forged 6061 stem body, ±7°
Saddle
Oval Concepts 238, steel rail
Headset
FSA NO.42B, 1 1/8" - 1.5", semi-cartridge bearings
Seatpost
Oval Concepts, 6061 alloy, 30.9mm diameter
Handlebar
Oval Concepts 205 riser bar, 6061 alloy, ± 5mm rise, 9° sweep, 31.8mm clamp
Brake lever
Shimano M315, hydraulic disc
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Gamma Pro, 30T
Shifter
Shimano Deore, Rapid Fire, 10-speed
Bottom bracket
FSA Mega EXO, threaded
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Fuji A2-SL custom-butted alloy front and rear triangle w/ shaped oversized down tube, tapered 1 1/8" - 1.5" head tube, threaded bottom bracket, sealed cartridge bearing pivots, A4 suspension system, Boost 148x12mm dropout, replaceable hanger, 120mm travel
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB STP i25 rims 32H rims, Formula CL-511 Boost front, Formula DC-1248 Boost rear disc hubs, stainless black spokes, Tubeless Ready
Tires
Schwalbe Rocket Ron Performance, 29" x 2.25" 67tpi, Addix, folding, tubeless compatible

Geometry

Size 15" 17" 19" 21"
a
Seat tube length
401,0
432,0
486,2
536,3
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
581,0
606,0
631,0
651,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
96,0
96,0
h
Wheelbase
1134,3
1160,5
1186,7
1207,9
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
588,9
598,1
607,4
616,7
l
Reach
418,0
440,4
462,8
480,3
m
Standover height
797,7
802,4
815,8
838,6
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
697,0
723,0
749,0
770,0
