Fuji Outland LT 1.3 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
Fuji Outland LT 1.3 2019

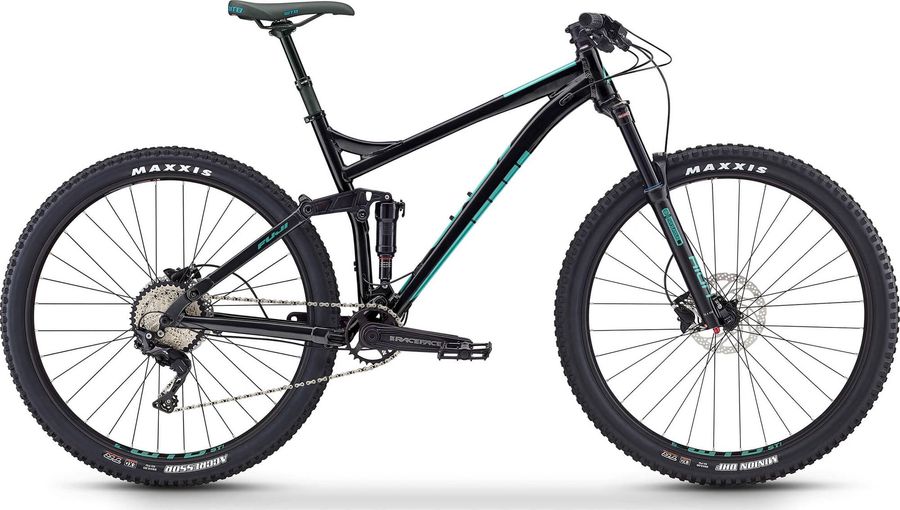

About the Fuji Outland LT 1.3 2019

The Fuji Outland LT 1.3 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fuji Outland LT 1.3 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
WTB Waffel, Lock on
Components
Steam
Race Face Ride, alloy, +6 degree rise
Saddle
WTB Volt Sport
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seatpost
KS E30i dropper, 30.9mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Southpaw Lever
Handlebar
Race Face Ride Riser Bar, alloy, 20mm rise, 760mm
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Ride, 30T
Shifter
Shimano SLX Ispec, Rapid Fire, 1 x 11-speed
Bottom bracket
Race Face, threaded
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X11
Frameset
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12mm, 140mm
Front suspension
SR Suntour Aion 35
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
WTB ST i29 32H, Shimano MT400 front hub, MT400 rear hub, stainless black spokes
Tires
Maxxis Minion DHF, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding, Maxxis Aggressor, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding

Geometry

Size SM MD LG XL
a
Seat tube length
384,7
436,1
464,0
513,4
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
591,7
616,7
641,7
661,7
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
111,0
111,0
107,0
h
Wheelbase
1172,1
1198,7
1225,2
1246,7
i
Chainstay length
437,7
437,7
437,7
437,7
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
614,7
623,9
633,0
632,8
l
Reach
421,7
444,2
466,7
484,1
m
Standover height
825,4
842,5
844,3
855,3
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
736,0
763,0
789,0
811,0
