Fuji Rakan 29 1.3 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

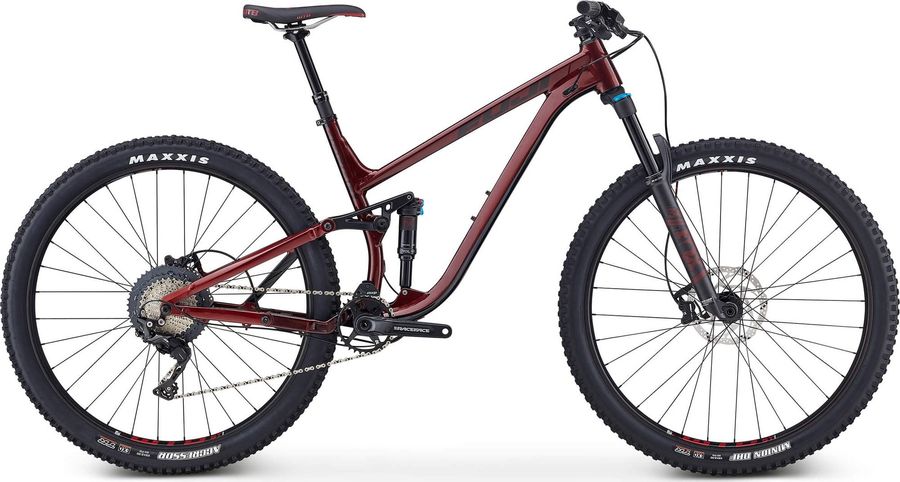

Fuji Rakan 29 1.3 2020

About the Fuji Rakan 29 1.3 2020

The Fuji Rakan 29 1.3 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Fuji Rakan 29 1.3 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
WTB Waffel, Lock on
Components
Steam
Race Face Ride, alloy, +6° rise
Saddle
WTB Volt Comp
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seatpost
KS LEV E30i dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Southpaw Lever
Handlebar
Race Face Ride Riser Bar, alloy, 10mm rise, 760mm
Brake lever
TRP G-Spec Trail S
Brakes
TRP G-Spec
Drivetrain
Crankset
Race Face Aeffect, 32T
Shifter
Shimano SLX Ispec, Rapid Fire, 1 x 11-speed
Bottom bracket
Race Face, threaded
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X11
Frameset
Frame
Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 120mm
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float Performance EVOL
Wheels
Rims
WTB ST i29 32H, DT Swiss 370 front hub, 370 rear hub, DT Swiss spokes
Tires
Maxxis Minion DHF, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding, front, Maxxis Aggressor, 29" x 2.30", 60tpi, EXO, Tubeless Ready, folding, rear

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
420,0
458,0
495,0
b
Seat tube angle
76,0º
75,5º
75,0º
75,0º
c
Top tube length
595,4
623,2
651,3
673,8
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
121,0
121,0
121,0
121,0
h
Wheelbase
1173,8
1197,7
1221,8
1245,9
i
Chainstay length
428,2
428,2
428,2
428,2
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
592,0
601,2
610,3
619,4
l
Reach
447,0
467,0
487,0
507,0
m
Standover height
739,0
751,3
754,5
768,5
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
747,0
771,0
795,0
820,0
