Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

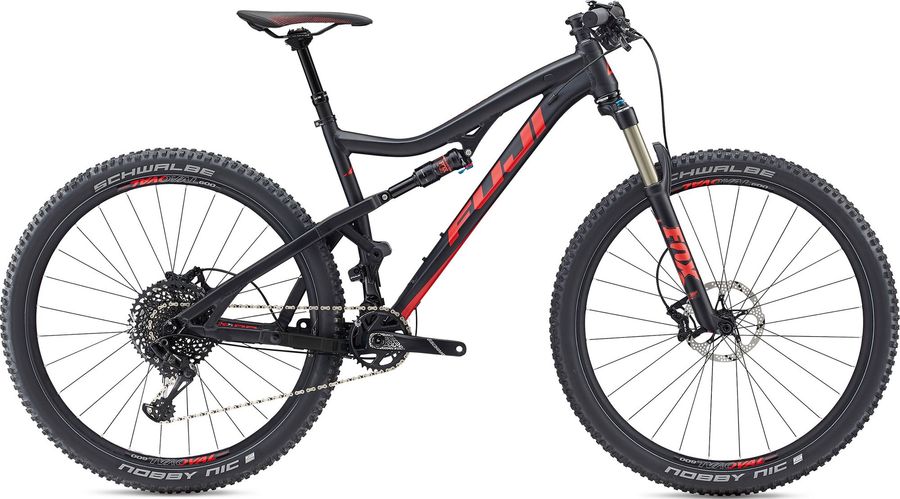

About the Fuji Rakan 29 3.4 2018
The Fuji Rakan 29 3.4 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Oval Concepts 634, large diameter pads, single lock on, dual density
|
|---|
|
Steam
|
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
|
|---|---|
|
Saddle
|
Oval Concepts 238 trail, steel rail
|
|
Headset
|
FSA NO. 9M/12B, 1 1/8" - 1.5", sealed cartridge bearings
|
|
Seatpost
|
Oval Concepts 300, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts 205 riser bar, 6061 alloy, +/- 5mm rise, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
TRP Slate T4, hydraulic disc
|
|
Brakes
|
TRP Slate T4
|
|
Crankset
|
Truvativ Descendant, 34T
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed
|
|
Bottom bracket
|
SRAM, PF30
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Fuji A6-SL super-butted alloy front and rear triangle w/ shaped oversized down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket, sealed cartridge bearing pivots, w/ MLink patented suspension system, Boost 148x12mm dropout, replaceable hanger, 120mm travel
|
|---|---|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rear suspension
|
Fox Float Performance EVOL
|
|
Rims
|
Oval Concepts 600AM Boost, Centerlock hubs, Boost 110x15mm & 148x12mm thru axles, 29" 28H rims
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic Performance, 29" x 2.35", 67tpi, Addix, folding, tubeless compatible
|
|
Rear hub
|
Front: Oval Concepts 600AM, 110mm x 15mm, centerlock, Rear: Oval Concepts 600AM, 148mm x 12mm, centerlock
|
|
Front hub
|
Front: Oval Concepts 600AM, 110mm x 15mm, centerlock, Rear: Oval Concepts 600AM, 148mm x 12mm, centerlock
|
Geometry
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
|
a
Seat tube length
|
381,5
|
432,2
|
482,9
|
533,6
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
553,5
|
588,5
|
610,5
|
639,5
|
|
d
Head tube length
|
105,0
|
105,0
|
115,0
|
115,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
89,0
|
89,0
|
89,0
|
-
|
|
h
Wheelbase
|
1109,3
|
1144,3
|
1167,3
|
1196,3
|
|
i
Chainstay length
|
448,0
|
448,0
|
448,0
|
448,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
37,0
|
|
k
Stack height
|
609,5
|
609,5
|
618,2
|
619,5
|
|
l
Reach
|
384,0
|
419,0
|
438,4
|
467,4
|
|
m
Standover height
|
764,9
|
774,9
|
774,1
|
791,2
|
|
x
Bottom bracket height
|
337,0
|
337,0
|
337,0
|
337,0
|
|
y
Front center
|
663,0
|
698,0
|
721,0
|
-
|
