Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

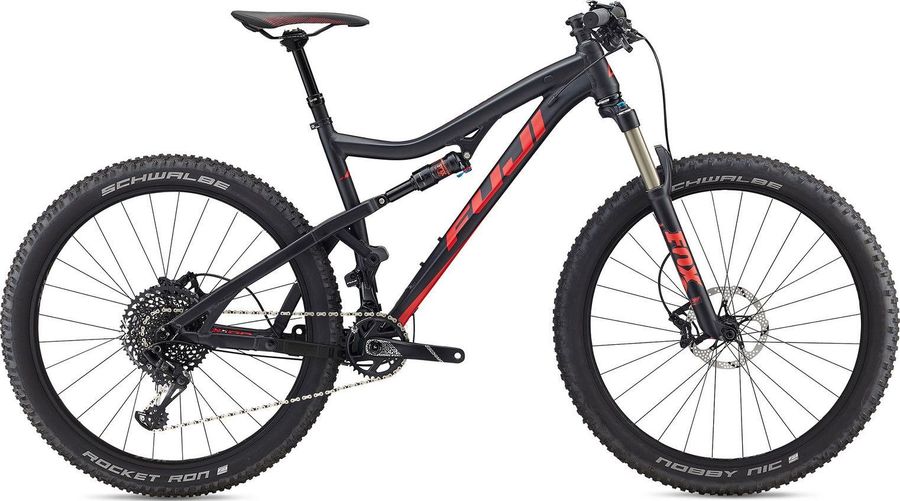

About the Fuji Rakan Plus 3.4 2018
The Fuji Rakan Plus 3.4 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Oval Concepts lock-on
|
|---|
|
Steam
|
Oval Concepts 313 alloy
|
|---|---|
|
Saddle
|
Oval Concepts 238 trail, steel rail
|
|
Headset
|
FSA NO.9M/12B, sealed cartridge bearings
|
|
Seatpost
|
KS Lev Integra
|
|
Handlebar
|
Oval Concepts 205 alloy riser, 760mm width
|
|
Brake lever
|
TRP Slate T4
|
|
Brakes
|
TRP Slate T4
|
|
Crankset
|
Truvativ Descendant, 175mm (170mm size S)
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed
|
|
Bottom bracket
|
PF30
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rear suspension
|
Fox Float Performance EVOL
|
|
Rims
|
Oval Concepts 600AM Boost Plus, 28-hole
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic, 27.5" x 2.8" Snake Skin, Trail Star, 67tpi, folding, tubeless ready
|
|
Rear hub
|
Front: Oval Concepts 600AM, 110mm x 15mm, centerlock, Rear: Oval Concepts 600AM, 148mm x 12mm, centerlock
|
|
Front hub
|
Front: Oval Concepts 600AM, 110mm x 15mm, centerlock, Rear: Oval Concepts 600AM, 148mm x 12mm, centerlock
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
381,5
|
432,2
|
482,9
|
533,6
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
553,5
|
588,5
|
610,5
|
639,5
|
|
d
Head tube length
|
105,0
|
105,0
|
115,0
|
115,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1109,3
|
1144,3
|
1167,3
|
1196,3
|
|
i
Chainstay length
|
448,0
|
448,0
|
448,0
|
448,0
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
609,5
|
609,5
|
618,2
|
619,5
|
|
l
Reach
|
384,0
|
419,0
|
438,4
|
467,4
|
|
m
Standover height
|
764,9
|
774,9
|
774,1
|
791,2
|
|
x
Bottom bracket height
|
-
|
-
|
-
|
-
|
|
y
Front center
|
-
|
-
|
-
|
-
|
