Fuji Reveal 27.5 1.0 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,6 kg
Front travel
130mm
Rear travel
120mm

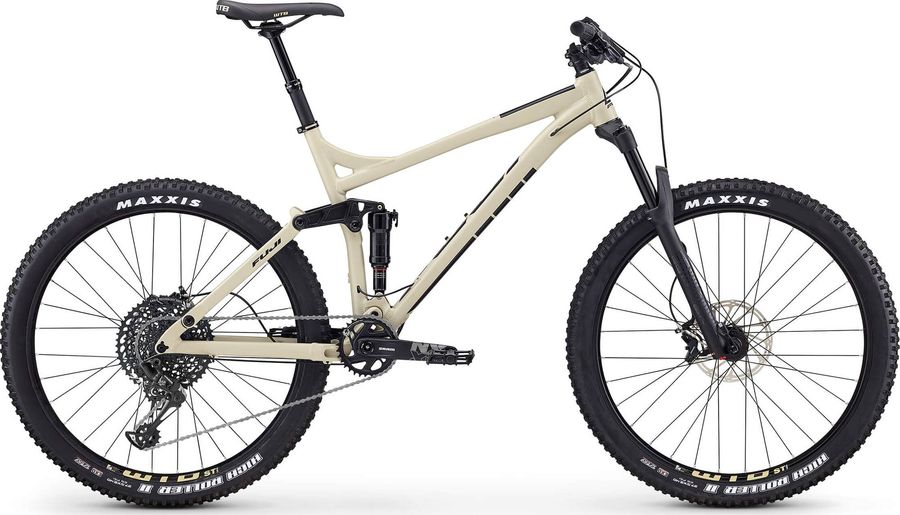

Fuji Reveal 27.5 1.0 2019

About the Fuji Reveal 27.5 1.0 2019

The Fuji Reveal 27.5 1.0 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,6 kg.

Features

The Fuji Reveal 27.5 1.0 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
WTB Waffel Grip, Single lock on
Pedals
Alloy platform
Components
Steam
Oval Concepts 600AM, alloy, 0°
Saddle
WTB Volt Sport
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seatpost
KS E30i Integra dropper, 30.9mm, 15, 17" - 100mm travel, 19, 21" - 125mm travel, Southpaw Lever
Handlebar
Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle, 32T
Shifter
SRAM NX Eagle, 1 x 12-speed
Bottom bracket
SRAM DUB, threaded
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12mm, 120mm
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i29 32H rims, Formula CL-511 front, DC-1248 rear hubs, stainless black spokes
Tires
Maxxis High Roller II, 27.5" x 2.40", 60tpi, EXO, Tubeless Ready, folding

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
432,0
488,0
533,4
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
580,0
605,0
630,0
650,0
d
Head tube length
90,0
100,0
110,0
-
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
h
Wheelbase
1121,0
1147,0
1173,0
1194,2
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
547,7
557,0
566,2
575,5
l
Reach
428,1
450,5
473,0
490,8
m
Standover height
781,6
786,3
800,0
822,8
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
691,0
717,0
743,0
764,0
