Fuji Reveal 27.5 1.1 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,25 kg
Front travel
120mm
Rear travel
120mm

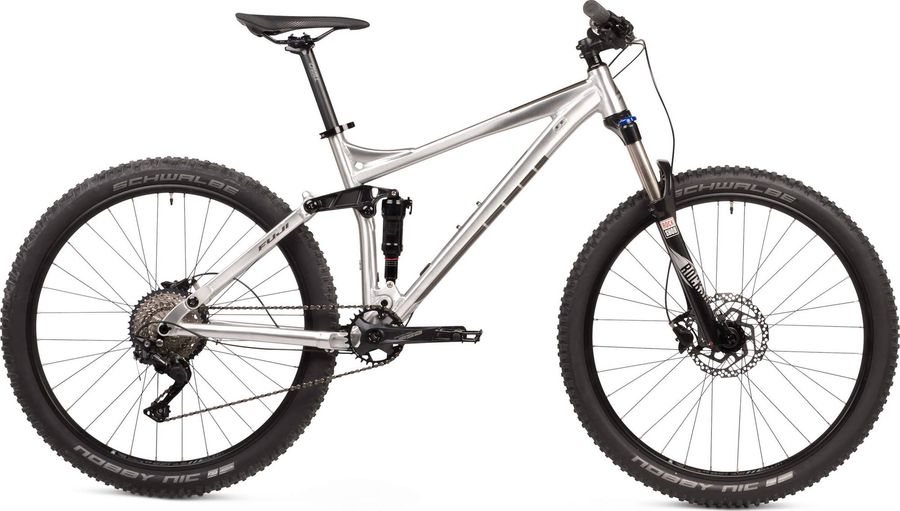

Fuji Reveal 27.5 1.1 2018

About the Fuji Reveal 27.5 1.1 2018

The Fuji Reveal 27.5 1.1 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 15,25 kg.

Features

The Fuji Reveal 27.5 1.1 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Fuji Performance Grip Lock On
Pedals
Alloy platform
Components
Steam
Oval Concepts 600AM, alloy, 0°
Saddle
Oval Concepts 238 trail
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seatpost
Oval Concepts, alloy, 30.9mm
Handlebar
Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm
Brake lever
Shimano MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA Gamma Pro, 30T
Shifter
Shimano Deore, Rapid Fire, 1 x 10-speed
Bottom bracket
FSA Mega EXO, threaded
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12mm, 120mm
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB STP i29 32H rims, Formula DC-511 front, DC-1248 rear hub, stainless black spokes
Tires
Maxxis High Roller II, 27.5" x 2.40", 60tpi, EXO, Tubeless Ready, folding

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
432,0
488,0
533,4
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
580,0
605,0
630,0
650,0
d
Head tube length
90,0
100,0
110,0
-
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
h
Wheelbase
1121,0
1147,0
1173,0
1194,2
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
547,7
557,0
566,2
575,5
l
Reach
428,1
450,5
473,0
490,8
m
Standover height
781,6
786,3
800,0
822,8
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
691,0
717,0
743,0
764,0
