Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,44 kg
Front travel
120mm
Rear travel
120mm

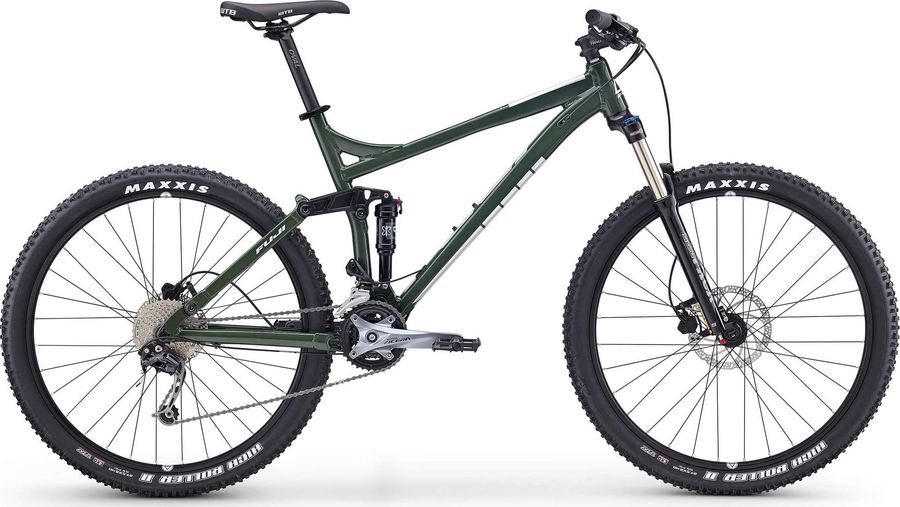

About the Fuji Reveal 27.5 1.3 2020
The Fuji Reveal 27.5 1.3 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9). Its features include boost 148, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 15,44 kg.
Features
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Fuji Performance Grip
|
|---|---|
|
Pedals
|
Resin platform
|
|
Steam
|
Oval Concepts 600AM, alloy, 0°
|
|---|---|
|
Saddle
|
Oval Concepts 238 trail
|
|
Headset
|
FSA 1 1/8" - 1.5", sealed bearings
|
|
Seatpost
|
Oval Concepts, alloy, 30.9mm
|
|
Handlebar
|
Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Shimano Acera, 36/22T
|
|---|---|
|
Shifter
|
Shimano Alivio, Rapid Fire, 2 x 9-speed
|
|
Bottom bracket
|
VP-BC73, sealed cartridge bearing
|
|
Front derailleur
|
Shimano Alivio
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Chain
|
KMC Z99
|
|
Frame
|
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12MM, 120MM
|
|---|---|
|
Front suspension
|
SR Suntour XCR LO
|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Rims
|
Fuji Aluminum rims 32H, Formula DC-51 front, DC-1248 rear hubs, stainless black spokes
|
|---|---|
|
Tires
|
Maxxis High Roller II, 27.5" x 2.40", 60tpi, EXO, folding
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
432,0
|
488,0
|
533,4
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
580,0
|
605,0
|
630,0
|
650,0
|
|
d
Head tube length
|
90,0
|
100,0
|
110,0
|
-
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
98,0
|
98,0
|
98,0
|
98,0
|
|
h
Wheelbase
|
1121,0
|
1147,0
|
1173,0
|
1194,2
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
10,0
|
10,0
|
10,0
|
10,0
|
|
k
Stack height
|
547,7
|
557,0
|
566,2
|
575,5
|
|
l
Reach
|
428,1
|
450,5
|
473,0
|
490,8
|
|
m
Standover height
|
781,6
|
786,3
|
800,0
|
822,8
|
|
x
Bottom bracket height
|
345,0
|
345,0
|
345,0
|
345,0
|
|
y
Front center
|
691,0
|
717,0
|
743,0
|
764,0
|
