Fuji SLM 29 2.7 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

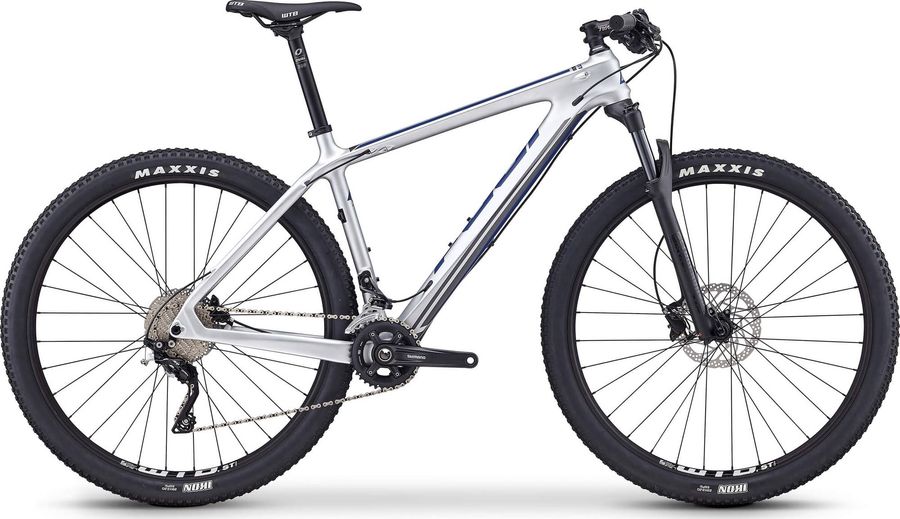

Fuji SLM 29 2.7 2020

About the Fuji SLM 29 2.7 2020

The Fuji SLM 29 2.7 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include boost 110 , hydraulic disc brakes, and tapered head tube.

Features

The Fuji SLM 29 2.7 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Fuji Performance Grip Lock On
Components
Steam
Oval Concepts 313, alloy, +/-7°
Saddle
WTB Silverado Sport
Headset
FSA 1 1/8" - 1.5", sealed bearing
Seatpost
Oval Concepts 300, alloy, 31.6mm
Handlebar
Oval Concepts flat bar, alloy
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano Deore, 36/26T
Shifter
Shimano Deore, Rapid Fire, 2 x 10-speed
Bottom bracket
Shimano sealed cartridge, PF30 adaptor included
Front derailleur
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
C15 super-light high-modulus carbon, PF30, 142x12mm
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i25 TCS 29" 32H rims, Shimano MT400 front hub, MT400 rear hub, stainless black spokes
Tires
Maxxis Ikon, 29" x 2.2", 60tpi, folding

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
445,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
598,0
617,0
636,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
70,0º
71,0º
71,0º
71,0º
f
Rake
47,0
47,0
47,0
47,0
g
Trail
87,0
81,0
87,0
81,0
h
Wheelbase
1081,6
1087,3
1106,6
1126,0
i
Chainstay length
424,0
424,0
424,0
424,0
j
Bottom bracket drop
53,0
53,0
53,0
53,0
k
Stack height
591,3
610,6
628,8
624,3
l
Reach
407,8
418,4
437,4
453,0
m
Standover height
770,8
798,4
809,5
846,8
x
Bottom bracket height
321,0
321,0
321,0
321,0
y
Front center
663,0
669,0
688,0
707,0
