Fuji Tahoe 29 1.3 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,65 kg
Front travel
100mm

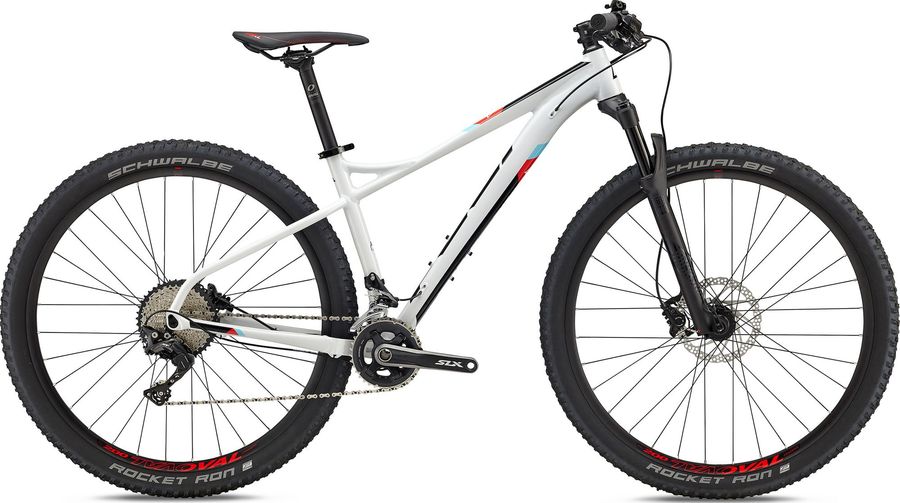

Fuji Tahoe 29 1.3 2018

About the Fuji Tahoe 29 1.3 2018

The Fuji Tahoe 29 1.3 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,65 kg.

Features

The Fuji Tahoe 29 1.3 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Oval Concepts 620, ergo shape, single lock on, single density Kraton
Components
Steam
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Saddle
Oval Concepts 238, steel rail
Headset
FSA NO.42B, 1 1/8" - 1.5", semi-cartridge bearings
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm diameter
Handlebar
Oval Concepts 250 riser bar, 6061 alloy, +/- 5mm rise, 9° sweep, 31.8mm clamp
Brake lever
Shimano MT500, hydraulic disc
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano MT600, Hollow Tech II w/ integrated spindle, 36/26T
Shifter
Shimano SLX Ispec, Rapid Fire, 22-speed
Bottom bracket
Shimano, threaded
Front derailleur
Shimano SLX, side swing, direct-mount
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Fuji A2-SL custom-butted aluminum front and rear triangle w/ PowerCurve down tube, smooth welds, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Oval Concepts 200 Boost, 6-bolt hubs, Boost 110x15mm & 148x12mm thru axles, 29" 32H rims
Tires
Schwalbe Rocket Ron Performance, 29" x 2.25" 67tpi, Addix, folding

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
430,0
430,0
465,0
513,0
543,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
576,0
601,0
626,0
646,0
666,0
d
Head tube length
100,0
100,0
110,0
115,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
89,0
89,0
89,0
h
Wheelbase
1086,9
1111,8
1137,9
1158,0
1178,4
i
Chainstay length
431,0
431,0
431,0
431,0
431,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
615,6
615,6
624,9
629,6
634,3
l
Reach
386,6
411,6
433,7
452,3
470,9
m
Standover height
699,5
698,0
696,3
717,6
729,4
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
663,0
688,0
714,0
734,0
754,0
