Fuji Tahoe 29 1.5 2019

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
Fuji Tahoe 29 1.5 2019

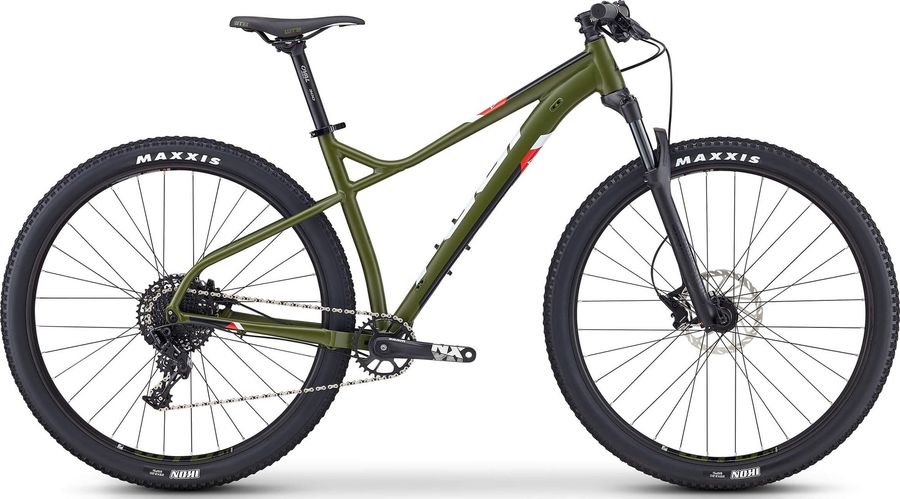

About the Fuji Tahoe 29 1.5 2019

The Fuji Tahoe 29 1.5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Fuji Tahoe 29 1.5 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Fuji Performance Grip Plastic Lock On
Components
Steam
Oval Concepts 313, alloy, +/-7°
Saddle
WTB Silverado Sport
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seatpost
Oval Concepts 300, alloy, 30.9mm
Handlebar
Oval Concepts flat bar, alloy, 9 degree sweep, 710mm
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX, 32T
Shifter
SRAM NX trigger, 1 x 11-speed
Bottom bracket
SRAM Power spline, threaded
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
KMC X11
Frameset
Frame
Fuji A6-SL super-butted alloy, smooth welds, Boost 148x12mm
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i25 TCS 29" 32H rims, Formula DC-711 front hub, DHT-148S rear hub, stainless black spokes
Tires
Maxxis Ikon, 29" x 2.2", 60tpi, folding

Geometry

Size SM MD LG XL XXL
a
Seat tube length
430,0
430,0
465,0
513,0
543,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
576,0
601,0
626,0
646,0
666,0
d
Head tube length
100,0
100,0
110,0
115,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
89,0
89,0
89,0
h
Wheelbase
1086,9
1111,8
1137,9
1158,0
1178,4
i
Chainstay length
431,0
431,0
431,0
431,0
431,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
615,6
615,6
624,9
629,6
634,3
l
Reach
386,6
411,6
433,7
452,3
470,9
m
Standover height
699,5
698,0
696,3
717,6
729,4
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
663,0
688,0
714,0
734,0
754,0
