Groupset
Shimano SLX
Frame material
Alloy
Wheel size
26"
Suspension type
Rigid
Weight
15,15 kg

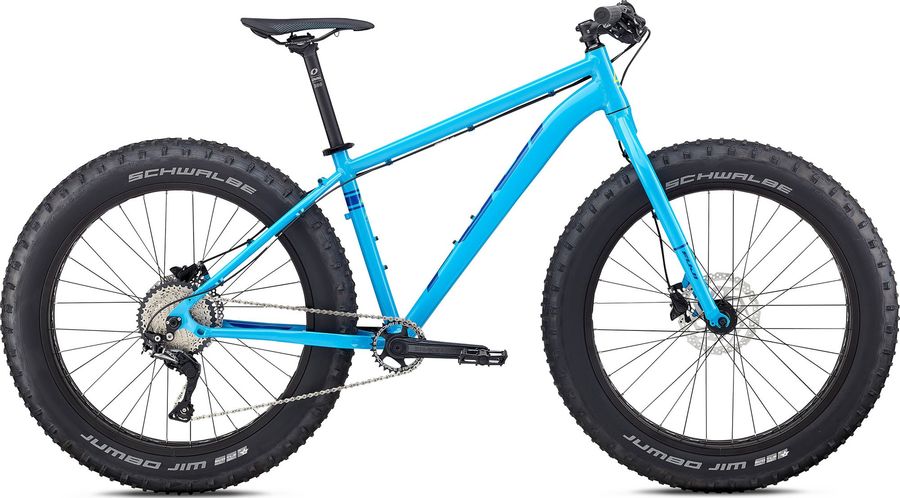

About the Fuji Wendigo 26 2.1 2018
The Fuji Wendigo 26 2.1 2018 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 15,15 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Oval Concepts 634, large diameter pads, single lock on, dual density
|
|---|---|
|
Pedals
|
Alloy platform
|
|
Steam
|
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
|
|---|---|
|
Saddle
|
Oval Concepts 238, steel rail
|
|
Headset
|
FSA NO. 42B, 1 1/8" semi-integrated, caged bearings
|
|
Seatpost
|
Oval Concepts 300, 6061 alloy, 30.9mm diameter
|
|
Handlebar
|
Oval Concepts flat bar, 6061 alloy, 9° sweep, 31.8mm clamp
|
|
Brake lever
|
Shimano M315, hydraulic disc
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Race Face Aeffect, DM, 28T
|
|---|---|
|
Shifter
|
Shimano SLX, Rapid Fire, 11-speed
|
|
Bottom bracket
|
Sealed cartridge bearing
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
KMC X11
|
|
Front suspension
|
Fuji Alloy rigid, tapered alloy steerer, disc tabs
|
|---|---|
|
Frame
|
Fuji A2-SL custom-butted alloy front and rear triangle, oversized seat tube, w/ S-bend chainstays, post disc mount, 197x12mm dropout and replaceable hanger
|
|
Rims
|
Oval Concepts 475, 6-bolts hubs, 137x9mm QR & 197x12mm thru axles, 26" 80mm wide 32H rims
|
|---|---|
|
Tires
|
Schwalbe Jumbo Jim Performance 26 x 4.4", 127tpi
|
Geometry
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
|
a
Seat tube length
|
381,0
|
432,0
|
483,0
|
533,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
586,0
|
601,0
|
616,0
|
631,0
|
|
d
Head tube length
|
125,0
|
135,0
|
145,0
|
155,0
|
|
e
Head tube angle
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
50,0
|
50,0
|
50,0
|
50,0
|
|
g
Trail
|
75,0
|
75,0
|
75,0
|
75,0
|
|
h
Wheelbase
|
1124,4
|
1140,0
|
1155,7
|
1171,3
|
|
i
Chainstay length
|
465,0
|
465,0
|
465,0
|
465,0
|
|
j
Bottom bracket drop
|
54,0
|
54,0
|
54,0
|
54,0
|
|
k
Stack height
|
604,4
|
613,7
|
623,1
|
632,5
|
|
l
Reach
|
400,6
|
412,8
|
424,9
|
437,0
|
|
m
Standover height
|
795,2
|
823,3
|
852,9
|
881,1
|
|
x
Bottom bracket height
|
289,0
|
289,0
|
289,0
|
289,0
|
|
y
Front center
|
665,0
|
680,0
|
696,0
|
711,0
|
