Ghost H AMR X 9.7 + 2018

MTB Trail
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,4 kg
Front travel
140mm
Rear travel
140mm

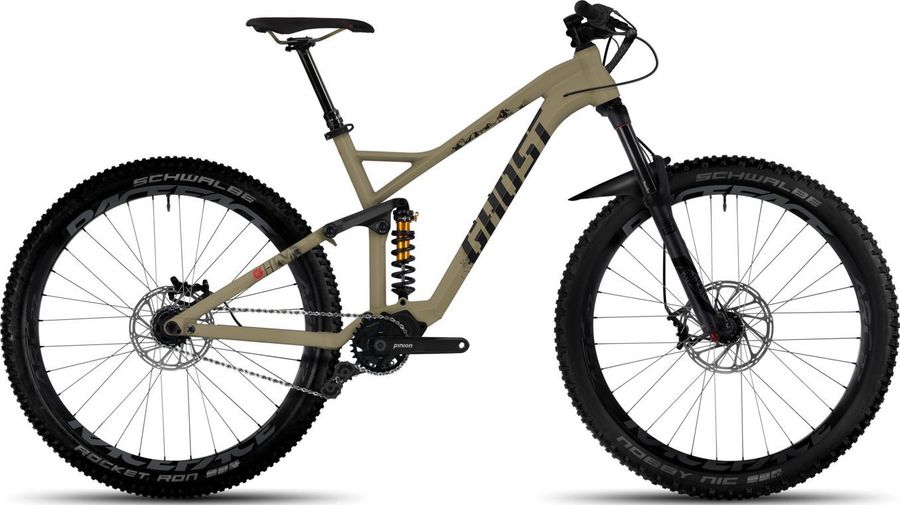

Ghost H AMR X 9.7 + 2018

About the Ghost H AMR X 9.7 + 2018

The Ghost H AMR X 9.7 + 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 16,4 kg.

Features

The Ghost H AMR X 9.7 + 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Race Face Atlas, 35mm clamp, 50mm length
Saddle
SDG Fly
Headset
16012
Seatpost
RockShox Reverb Stealth
Handlebar
Race Face Atlas, 35mm clamp, 800mm width
Brake lever
SRAM Guide RS
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
Pinion 30
Cassette
Pinion 26
Shifter
Pinion 1.18
Chain guide
Chain tensioner pulleys
Bottom bracket
Pinion
Front derailleur
Pinion 1.18
Frameset
Frame
Aluminum
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
Cane Creek DB Inline
Wheels
Rims
Race Face ARC 40
Tires
Front: Schwalbe Nobby Nic, 27.5" x 2.8", Rear: Schwalbe Rocket Ron, 27.5" x 2.8"
Rear hub
Front: SP Hub Dynamo, 15x110mm Boost, Rear: Pinion, Boost
Front hub
Front: SP Hub Dynamo, 15x110mm Boost, Rear: Pinion, Boost

Geometry

Size SM MD LG
a
Seat tube length
420,0
460,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
c
Top tube length
568,0
593,0
618,0
d
Head tube length
110,0
120,0
120,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
53,0
53,0
53,0
g
Trail
93,0
93,0
93,0
h
Wheelbase
1147,0
1174,0
1199,0
i
Chainstay length
441,0
441,0
441,0
j
Bottom bracket drop
38,0
38,0
38,0
k
Stack height
617,0
626,0
626,0
l
Reach
409,0
432,0
457,0
m
Standover height
732,0
741,0
755,0
x
Bottom bracket height
317,0
317,0
317,0
y
Front center
709,0
736,0
761,0
