Ghost Hybride AL AMR S 6.7+ 2018

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

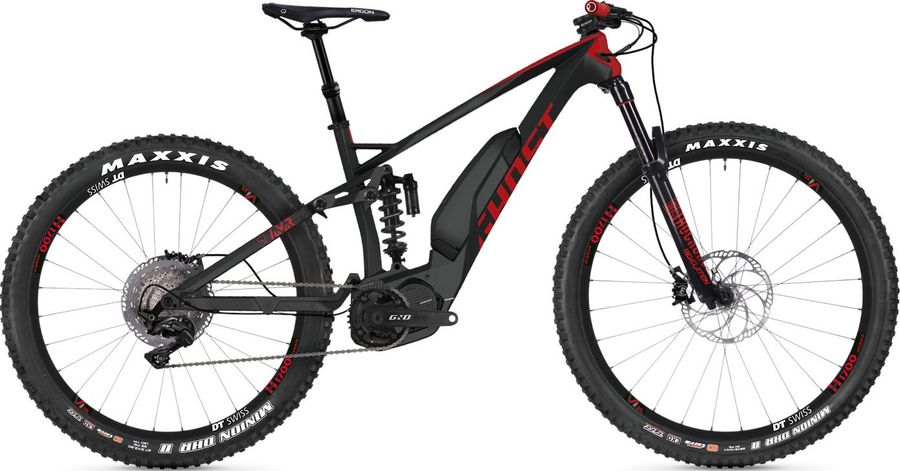

Ghost Hybride AL AMR S 6.7+ 2018

About the Ghost Hybride AL AMR S 6.7+ 2018

The Ghost Hybride AL AMR S 6.7+ 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ghost Hybride AL AMR S 6.7+ 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Team, 55mm length, 35mm clamp
Saddle
Ergon SME30
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Headset
16012, 44mm top / 56mm bottom
Seatpost
KS Lev Integra, 175mm drop
Handlebar
Ground Fiftyone Race, 780mm width, 35mm diameter
Brake lever
Magura MT 7
Brakes
Magura MT7
Drivetrain
Chain
11-speed
Crankset
Ground Fiftyone
Motor
Shimano DU-E8000
Shifter
Shimano XT SL-M8000, 11-speed
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Coil R
Body eyelet
Bearing, Standard, Trunnion
Compression tune
M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-R-A1
Name
Super Deluxe Coil R
Rebound tune
M
Shaft eyelet
Bearing, Standard
Wheels
Rims
Front: DT Swiss H 1700 Spline, 30mm width, Rear: DT Swiss H 1700 Spline, 35mm width
Tires
Front: Maxxis Minion DHR II, 29" x 2.4" 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II, 27.5" x 2.8" 3C MaxxTerra EXO
Spokes
DT Swiss
Rear hub
DT Swiss H 1700, Boost front and rear
Front hub
DT Swiss H 1700, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
76,1º
76,1º
76,1º
76,1º
c
Top tube length
577,0
599,0
639,0
673,0
d
Head tube length
90,0
100,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
48,0
47,0
48,0
47,0
g
Trail
110,0
112,0
110,0
112,0
h
Wheelbase
1185,0
1208,0
1252,0
1289,0
i
Chainstay length
462,0
462,0
462,0
462,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
616,0
626,0
644,0
663,0
l
Reach
427,0
447,0
482,0
512,0
m
Standover height
722,0
724,0
753,0
776,0
x
Bottom bracket height
-
-
-
-
y
Front center
725,0
748,0
792,0
829,0
