Ghost Hybride Kato FS S8.7+ AL 2018

E-Bike
MTB Trail
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

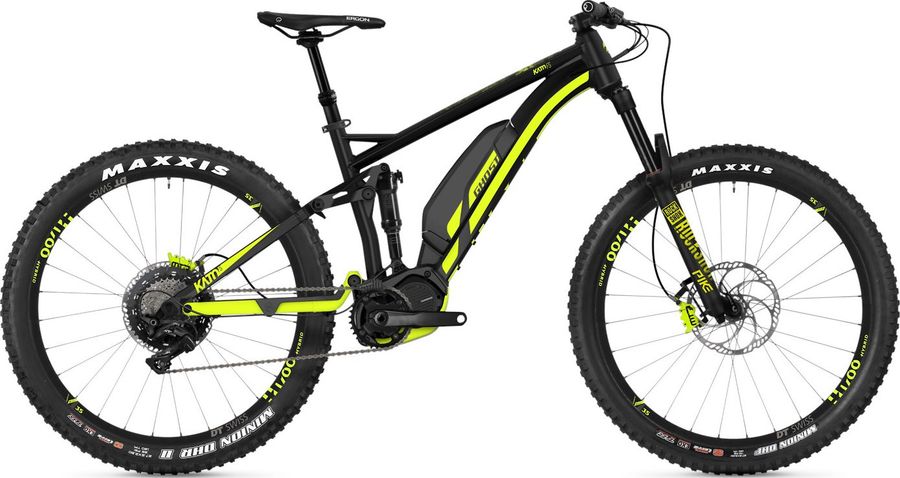

Ghost Hybride Kato FS S8.7+ AL 2018

About the Ghost Hybride Kato FS S8.7+ AL 2018

The Ghost Hybride Kato FS S8.7+ AL 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ghost Hybride Kato FS S8.7+ AL 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon
Components
Steam
Ghost MTB, 55mm length, 35mm clamp
Saddle
Ergon SME30
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Headset
16012, 44mm top / 56mm bottom
Seatpost
KS Lev Integra, 150mm drop
Handlebar
Ghost Low Rizer MTB, 760mm width, 15mm rise, 35mm diameter
Brake lever
Magura MT 7
Brakes
Magura MT7
Drivetrain
Chain
11-speed
Crankset
Shimano FC-E8050
Motor
Shimano DU-E8000
Shifter
Shimano XT Di2 SW-M8050, 11-speed
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Aluminum
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss H 1700 Spline
Tires
Front: Maxxis Minion DHF, 2.6" 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II, 2.8" 3C MaxxTerra EXO
Spokes
DT Swiss
Rear hub
DT Swiss H 1700 Spline, Boost front and rear
Front hub
DT Swiss H 1700 Spline, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
580,0
604,0
629,0
654,0
d
Head tube length
100,0
120,0
140,0
160,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-11,0
-10,0
-9,0
-9,0
g
Trail
170,0
169,0
168,0
168,0
h
Wheelbase
1192,0
1219,0
1248,0
1276,0
i
Chainstay length
462,0
462,0
462,0
462,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
751,0
765,0
783,0
801,0
l
Reach
427,0
447,0
467,0
487,0
m
Standover height
751,0
765,0
783,0
801,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
731,0
758,0
787,0
815,0
