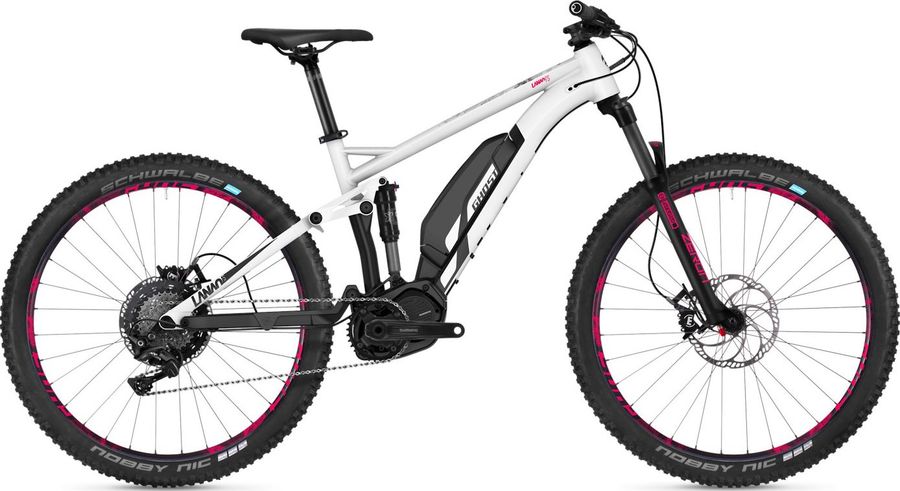

Ghost Hybride Lanao FS S3.7+ AL 2018
The Ghost Hybride Lanao FS S3.7+ AL 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm
About the Ghost Hybride Lanao FS S3.7+ AL 2018
The Ghost Hybride Lanao FS S3.7+ AL 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon
|
|---|
|
Steam
|
Ghost MTB, 55mm length, 35mm clamp
|
|---|---|
|
Saddle
|
Selle Italia X-Base
|
|
Battery
|
Shimano BT-E8010 with Shimano EC-E6000 charger
|
|
Headset
|
16012, 44mm top / 56mm bottom
|
|
Seatpost
|
Ghost Light DC 1, 400mm length
|
|
Handlebar
|
Ghost Low Rizer MTB, 760mm width, 15mm rise, 35mm diameter
|
|
Brake lever
|
Magura MT Thirty 2
|
|
Brakes
|
Magura MT Thirty
|
|
Chain
|
11-speed
|
|---|---|
|
Crankset
|
Shimano FC-E8000
|
|
Motor
|
Shimano DU-E8000
|
|
Shifter
|
Shimano Deore SL-M6000, 11-speed
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
SR Suntour Zeron 35
|
|
Rear suspension
|
X-Fusion O2 Pro RL
|
|
Rims
|
Rodi Tryp, 35mm width, 32 hole
|
|---|---|
|
Tires
|
Front: Schwalbe Nobby Nic Apex Addix Speedgrip, 2.6", Rear: Schwalbe Nobby Nic Apex Addix Speedgrip, 2.8"
|
|
Spokes
|
Rodi Tryp
|
|
Rear hub
|
Front: Formula EHL-148S, Boost 15mm x 110mm, Rear: Formula DC-511, Boost 12mm x 148mm
|
|
Front hub
|
Front: Formula EHL-148S, Boost 15mm x 110mm, Rear: Formula DC-511, Boost 12mm x 148mm
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
390,0
|
430,0
|
460,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
580,0
|
604,0
|
629,0
|
|
d
Head tube length
|
100,0
|
120,0
|
140,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-11,0
|
-10,0
|
-9,0
|
|
g
Trail
|
170,0
|
169,0
|
168,0
|
|
h
Wheelbase
|
1192,0
|
1219,0
|
1248,0
|
|
i
Chainstay length
|
462,0
|
462,0
|
462,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
751,0
|
765,0
|
783,0
|
|
l
Reach
|
427,0
|
447,0
|
467,0
|
|
m
Standover height
|
751,0
|
765,0
|
783,0
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
731,0
|
758,0
|
787,0
|
