BikeWise

Ghost Hybride SL AMR S 8.7+ 2018

E-Bike
MTB Trail
Groupset
Shimano XT Di2
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

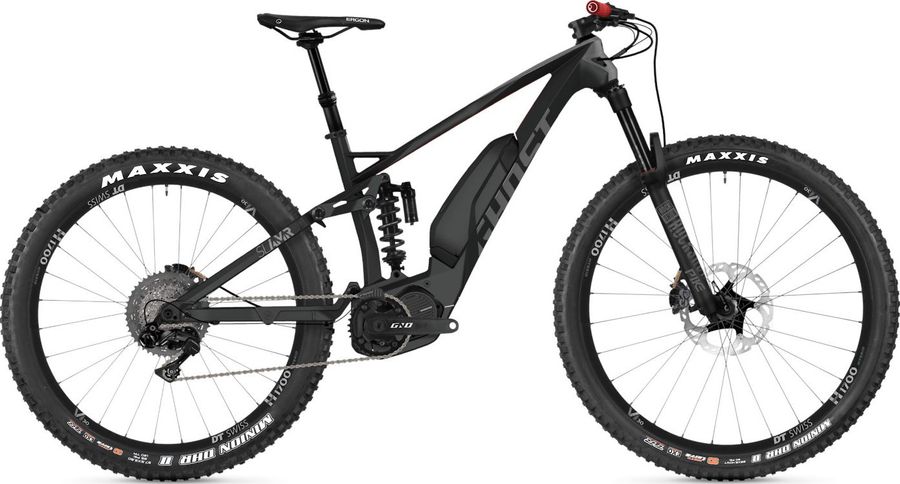

Ghost Hybride SL AMR S 8.7+ 2018

About the Ghost Hybride SL AMR S 8.7+ 2018

The Ghost Hybride SL AMR S 8.7+ 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ghost Hybride SL AMR S 8.7+ 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Syntace Megaforce 2, 50mm length, 35mm clamp
Saddle
Ergon SME30
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Headset
16012, 44mm top / 56mm bottom
Seatpost
KS Lev Integra, 175mm drop
Handlebar
Syntace Vector Carbon, 780mm width, 35mm diameter
Brake lever
Shimano Saint BR-M820
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Chain
11-speed
Crankset
Ground Fiftyone
Motor
Shimano DU-E8000
Shifter
Shimano XT Di2 SW-M8050, 11-speed
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Super Deluxe Coil R
Body eyelet
Bearing, Standard, Trunnion
Compression tune
M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-R-A1
Name
Super Deluxe Coil R
Rebound tune
M
Shaft eyelet
Bearing, Standard
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
Front: DT Swiss H 1700 Spline, 30mm width, Rear: DT Swiss H 1700 Spline, 35mm width
Tires
Front: Maxxis Minion DHR II, 29" x 2.4" 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II, 27.5" x 2.8" 3C MaxxTerra EXO
Spokes
DT Swiss
Rear hub
DT Swiss H 1700, Boost front and rear
Front hub
DT Swiss H 1700, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
76,1º
76,1º
76,1º
76,1º
c
Top tube length
577,0
599,0
639,0
673,0
d
Head tube length
90,0
100,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
48,0
47,0
48,0
47,0
g
Trail
110,0
112,0
110,0
112,0
h
Wheelbase
1185,0
1208,0
1252,0
1289,0
i
Chainstay length
462,0
462,0
462,0
462,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
616,0
626,0
644,0
663,0
l
Reach
427,0
447,0
482,0
512,0
m
Standover height
722,0
724,0
753,0
776,0
x
Bottom bracket height
-
-
-
-
y
Front center
725,0
748,0
792,0
829,0
