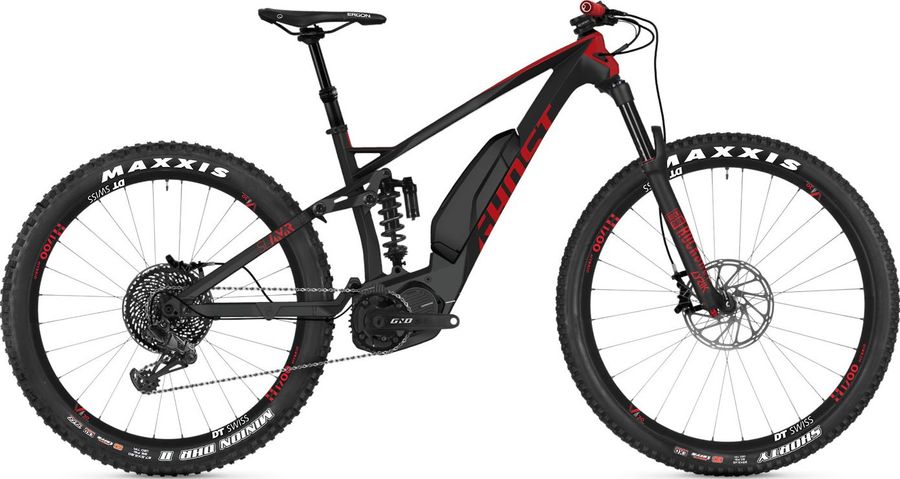

Ghost Hybride SL AMR X S 7.7+ LC 2018

E-Bike
MTB Trail
Groupset
SRAM EX1
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm
Ghost Hybride SL AMR X S 7.7+ LC 2018

About the Ghost Hybride SL AMR X S 7.7+ LC 2018

The Ghost Hybride SL AMR X S 7.7+ LC 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM EX1 drivetrain of 8 gears (1x8). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ghost Hybride SL AMR X S 7.7+ LC 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon
Components
Steam
Ground Fiftyone Team, 45mm length, 35mm clamp
Saddle
Ergon SME30
Battery
Shimano BT-E8010 with Shimano EC-E6000 charger
Headset
16012, 44mm top / 56mm bottom
Seatpost
KS Lev Integra, 175mm drop
Handlebar
Ground Fiftyone Carbon, 780mm width, 35mm rise, 35mm diameter
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Chain
8-speed
Crankset
Ground Fiftyone
Motor
Shimano DU-E8000
Shifter
SRAM EX1, 8-speed
Rear derailleur
SRAM EX1 X-HORIZON Rear Derailleur 8s
Cable pull ratio
1:1
Cage material
Aluminum
Color
Black
Max tooth
48
Model
RD-EX1-A1
Name
EX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
8s
Cassette
SRAM XG-899 E-BLOCK Cassette 8s 320 g
Cog finish cassete
Black
Cog sizes
11-48t:11,13,15,18,24,32,40,48
Gearing
11-48t
Model
CS-XG-899-A1
Name
XG-899 E-BLOCK™ Cassette
Speed
8s
Technology cassete
XG
Weight
320
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe Coil R
Body eyelet
Bearing, Standard, Trunnion
Compression tune
M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-R-A1
Name
Super Deluxe Coil R
Rebound tune
M
Shaft eyelet
Bearing, Standard
Wheels
Rims
Front: DT Swiss H 1700 Spline, 30mm width, Rear: DT Swiss H 1700 Spline, 35mm width
Tires
Front: Maxxis Shorty, 29" x 2.5" 3C MaxxTerra EXO, Rear: Maxxis Minion DHR II, 27.5" x 2.8" 3C MaxxTerra EXO
Spokes
DT Swiss
Rear hub
DT Swiss H 1700 Spline, Boost front and rear
Front hub
DT Swiss H 1700 Spline, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
581,0
603,0
643,0
677,0
d
Head tube length
90,0
100,0
120,0
140,0
e
Head tube angle
65,6º
65,6º
65,6º
65,6º
f
Rake
47,0
47,0
46,0
46,0
g
Trail
118,0
118,0
119,0
119,0
h
Wheelbase
1193,0
1216,0
1260,0
1297,0
i
Chainstay length
462,0
462,0
462,0
462,0
j
Bottom bracket drop
23,0
23,0
23,0
23,0
k
Stack height
623,0
632,0
651,0
670,0
l
Reach
418,0
437,0
473,0
502,0
m
Standover height
729,0
734,0
760,0
782,0
x
Bottom bracket height
-
-
-
-
y
Front center
732,0
755,0
799,0
836,0
