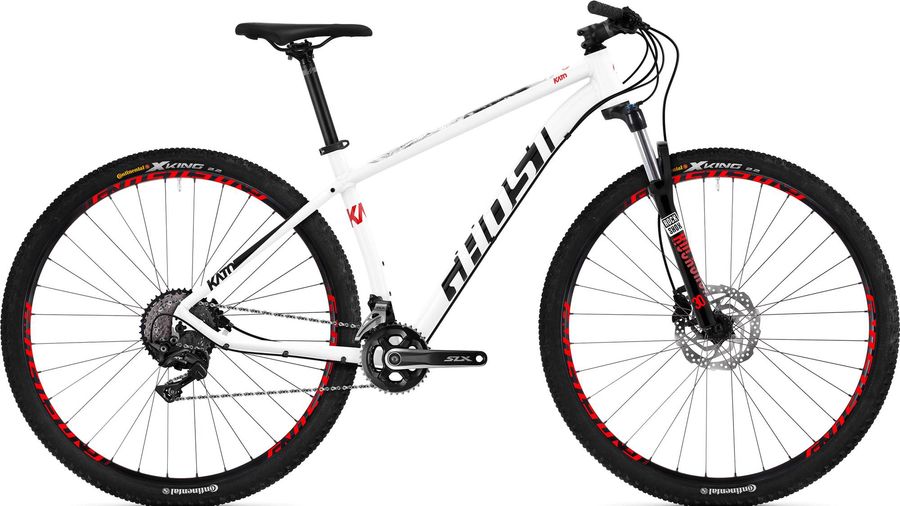

Ghost Kato 7.9 AL U 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
100mm
Ghost Kato 7.9 AL U 2019

About the Ghost Kato 7.9 AL U 2019

The Ghost Kato 7.9 AL U 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes. The bike weighs approximately 13,7 kg.

Features

The Ghost Kato 7.9 AL U 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
GHOST MTB Dia. 31.8 mm
Saddle
Selle Italia X-Base
Headset
14106
Seatpost
GHOST Light DC 1 31.6 mm
Handlebar
GHOST Low Rizer MTB 720 mm Rise 10 mm Dia. 31.8 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano SLX FC-M7000 34-24
Front derailleur
Shimano SLX FD-M7025
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
KATO AL
Front suspension
RockShox 30 Silver Coil, Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-30S-TK-A3
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Rodi Blackrock 622x21 mm 32H
Tires
Continental X-King 29 x 2.2
Rear hub
Shimano FH-RM35 QR
Front hub
Shimano HB-RM35 QR

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
66,0º
66,0º
66,0º
66,0º
c
Top tube length
595,0
610,0
620,0
630,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
-
-
-
-
f
Rake
-56,0
-743,0
-1181,0
-1230,0
g
Trail
-936,0
6403,0
2045,0
1374,0
h
Wheelbase
445,0
445,0
445,0
445,0
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
73,0
73,0
73,0
73,0
k
Stack height
627,0
637,0
645,0
655,0
l
Reach
402,0
415,0
420,0
430,0
m
Standover height
420,0
460,0
500,0
540,0
x
Bottom bracket height
301,0
301,0
301,0
301,0
y
Front center
657,0
672,0
682,0
692,0
