Ghost KATO FS Base 2021

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
15,2 kg
Front travel
120mm
Rear travel
120mm

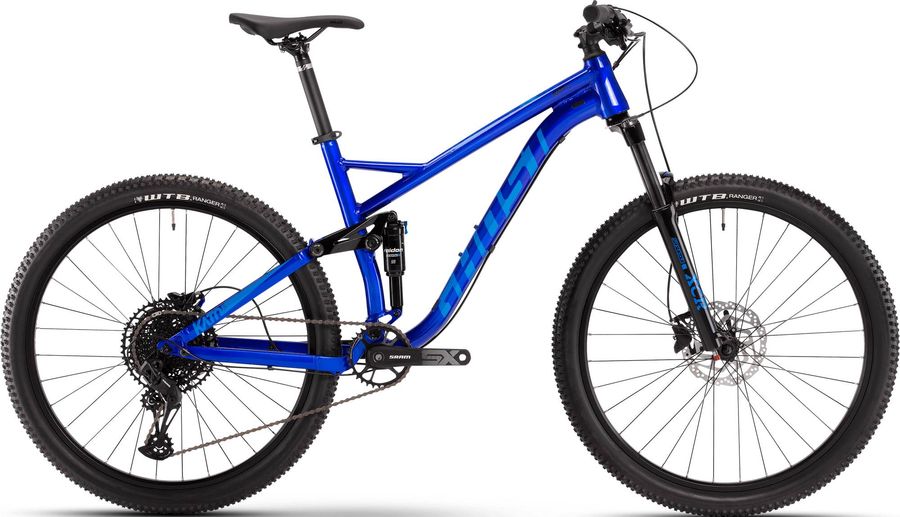

Ghost KATO FS Base 2021

About the Ghost KATO FS Base 2021

The Ghost KATO FS Base 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 15,2 kg.

Features

The Ghost KATO FS Base 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
GHOST MTB Dia. 31.8 mm
Saddle
DDK D2373A
Headset
16012
Seatpost
GHOST SP-DC1 31.6 mm
Handlebar
GHOST Low Rizer MTB 760 mm Rise 15 mm Dia. 31.8 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle 32T
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
KATO FS AL
Front suspension
SR Suntour XCR
Rear suspension
SR Suntour Raidon
Wheels
Rims
Schürman YAK Disc 584-25 mm 32H
Tires
WTB Ranger 27.5x2.3
Rear hub
Shimano FH-TX505 QR 135 mm
Front hub
Shimano HB-TX505 QR 100 mm

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
460,0
500,0
540,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
578,0
603,0
628,0
648,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
45,0
44,0
44,0
g
Trail
89,0
88,0
89,0
89,0
h
Wheelbase
1117,0
1144,0
1169,0
1185,0
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
590,0
600,0
609,0
618,0
l
Reach
421,0
443,0
465,0
478,0
m
Standover height
703,0
748,0
758,0
788,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
684,0
711,0
736,0
752,0
