BikeWise

Ghost Kato FS Essential 2022

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

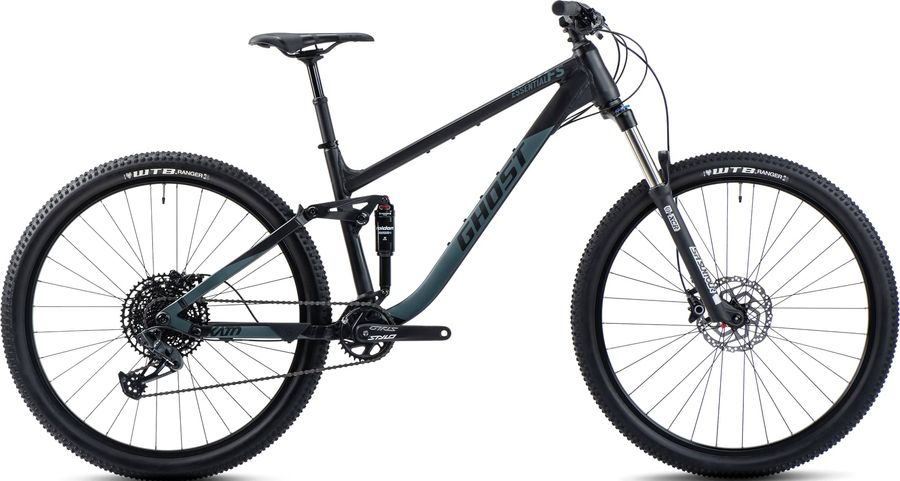

Ghost Kato FS Essential 2022

About the Ghost Kato FS Essential 2022

The Ghost Kato FS Essential 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Ghost Kato FS Essential 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia X-Base
Headset
Strummer semi-integrated
Seatpost
Limotec Alpha 1 31.6 mm 125 (XS/S) M-XL 150 (M-XL)
Handlebar
Ground Fiftyone Dia. 31.8 mm 720mm (S) 740mm (M-L) 780mm (XL)
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K 32T
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
KATO FS AL
Front suspension
SR Suntour XCR-34
Rear suspension
SR Suntour Raidon
Wheels
Rims
Schürmann Yak Disc 25
Tires
WTB Ranger 2.3 Comp
Rear hub
Shimano FH-MT410-B 12x148 mm
Front hub
Shimano HB-MT400-B 15x110 mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
-
-
-
-
-
b
Seat tube angle
-
-
-
-
-
c
Top tube length
-
-
-
-
-
d
Head tube length
44,0
44,0
44,0
44,0
44,0
e
Head tube angle
-
-
-
-
-
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
-
-
-
-
-
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
-
-
-
-
-
k
Stack height
-
-
-
-
-
l
Reach
-
-
-
-
-
m
Standover height
-
-
-
-
-
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
