Ghost KATO Pro 29 2021

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,9 kg
Front travel
100mm

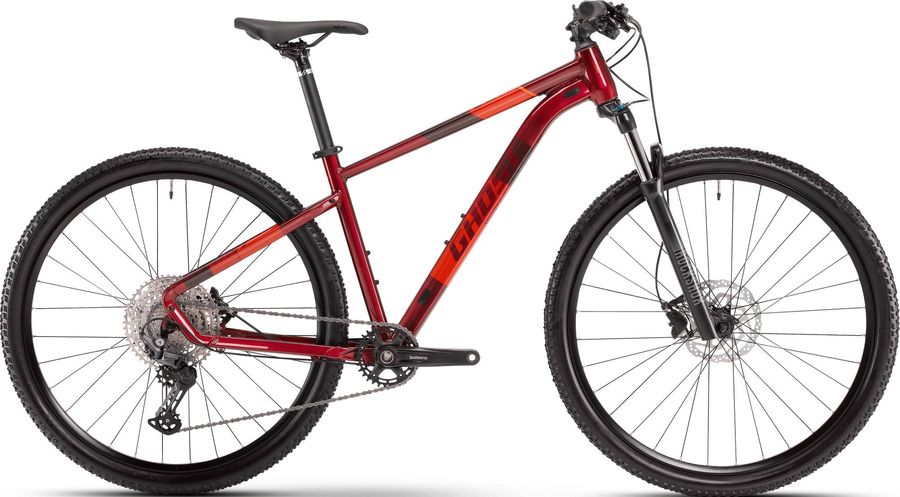

Ghost KATO Pro 29 2021

About the Ghost KATO Pro 29 2021

The Ghost KATO Pro 29 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes. The bike weighs approximately 14,9 kg.

Features

The Ghost KATO Pro 29 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
GHOST MTB Dia. 31.8 mm
Saddle
DDK D2373A
Headset
14106
Seatpost
GHOST SP DC1 31.6 mm
Handlebar
GHOST Low Rizer MTB 720 mm Rise 15 mm Dia. 31.8 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-MT510-1 32T
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
KATO PRO AL
Front suspension
RockShox Judy TK
Wheels
Rims
Rodi Excalibur XC 19
Tires
Mitas Ocelot 29x2.10
Rear hub
Shimano FH-MT401 QR 135 mm
Front hub
Shimano HB-TX505 QR 100 mm

Geometry

Size SM MD LG XL
a
Seat tube length
680,0
680,0
680,0
680,0
b
Seat tube angle
60,0º
60,0º
60,0º
60,0º
c
Top tube length
566,0
586,0
606,0
626,0
d
Head tube length
105,0
115,0
125,0
135,0
e
Head tube angle
-
-
-
-
f
Rake
-446,0
-812,0
-1192,0
-1293,0
g
Trail
-9398,0
4535,0
2060,0
1709,0
h
Wheelbase
441,0
441,0
441,0
441,0
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
73,5
73,5
73,5
73,5
k
Stack height
604,0
613,0
623,0
632,0
l
Reach
383,0
400,0
417,0
434,0
m
Standover height
391,0
431,0
471,0
511,0
x
Bottom bracket height
301,0
301,0
301,0
301,0
y
Front center
664,0
685,0
705,0
726,0
