Ghost Lanao 5.7 AL W 2019

Women's Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,6 kg
Front travel
100mm

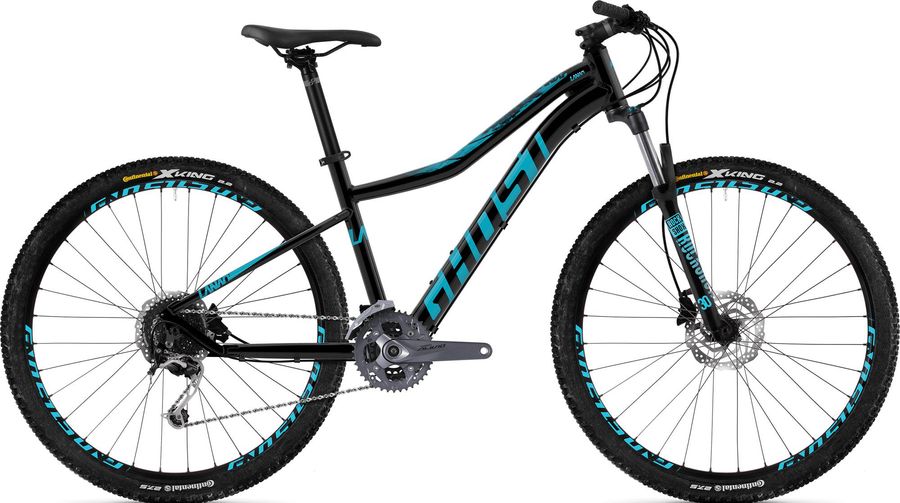

Ghost Lanao 5.7 AL W 2019

About the Ghost Lanao 5.7 AL W 2019

The Ghost Lanao 5.7 AL W 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 13,6 kg.

Features

The Ghost Lanao 5.7 AL W 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
GHOST MTB Dia. 31.8 mm
Saddle
Velo VL-4212
Headset
14106
Seatpost
GHOST Light DC 1 31.6 mm
Handlebar
GHOST Low Rizer 720 mm Rise 10 mm Dia. 31.8 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-M4050 40-30-22
Front derailleur
Shimano Alivio FD-M4000
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Deore XT RD-M772
Frameset
Frame
LANAO AL
Front suspension
RockShox 30 Silver Coil, Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-30S-TK-A3
Name
30 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
26", 27.5", 29"
Wheels
Rims
Rodi Excalibur XC 584x19 mm 32H
Tires
Continental X-King 27.5 x 2.2
Rear hub
Shimano FH-RM35 QR
Front hub
Shimano HB-RM35 QR

Geometry

Size XS SM MD
a
Seat tube length
690,0
690,0
690,0
b
Seat tube angle
-
-
-
c
Top tube length
565,0
583,0
600,0
d
Head tube length
110,0
120,0
120,0
e
Head tube angle
-
-
-
f
Rake
814,0
326,0
-414,0
g
Trail
740,0
92,0
-7343,0
h
Wheelbase
436,0
436,0
436,0
i
Chainstay length
-
-
-
j
Bottom bracket drop
73,0
73,0
73,0
k
Stack height
586,0
586,0
605,0
l
Reach
386,0
401,0
416,0
m
Standover height
361,0
401,0
441,0
x
Bottom bracket height
282,0
282,0
282,0
y
Front center
642,0
661,0
679,0
