Ghost LANAO 5.9 AL W 2020

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
100mm

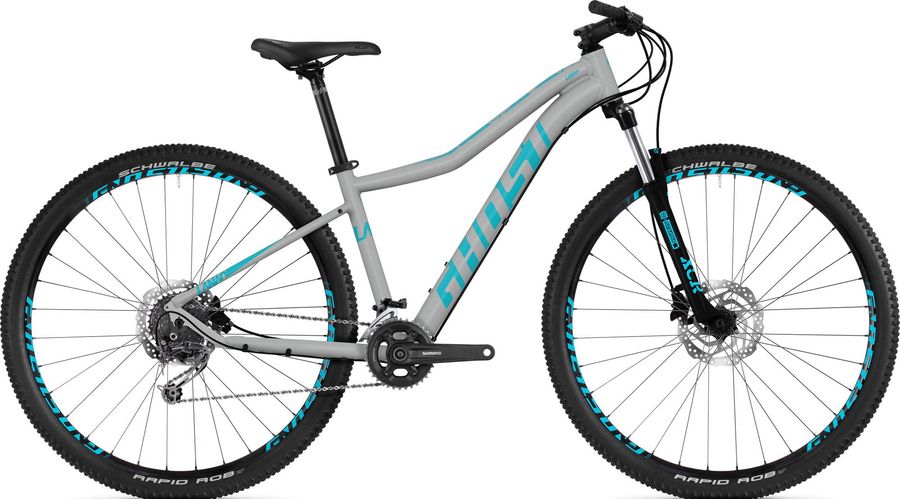

Ghost LANAO 5.9 AL W 2020

About the Ghost LANAO 5.9 AL W 2020

The Ghost LANAO 5.9 AL W 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 13,7 kg.

Features

The Ghost LANAO 5.9 AL W 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
XLC MTB Dia. 31.8 mm
Saddle
DDK 258
Headset
14106
Seatpost
GHOST SP-DC1 31.6 mm
Handlebar
XLC 720 mm Rise 15 mm Dia. 31.8 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-MT500 36-26
Front derailleur
Shimano Deore FD-M6025-L
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
LANAO AL
Front suspension
SR Suntour XCR
Wheels
Rims
Rodi Excalibur XC 622x19 mm 32H
Tires
Schwalbe Rapid Rob 29 x 2.10
Rear hub
Shimano FH-RM35 QR
Front hub
Shimano HB-RM35 QR

Geometry

Size SM MD LG
a
Seat tube length
695,0
695,0
695,0
b
Seat tube angle
65,0º
65,0º
65,0º
c
Top tube length
592,0
607,0
624,0
d
Head tube length
110,0
110,0
120,0
e
Head tube angle
-
-
-
f
Rake
295,0
65,0
-231,0
g
Trail
25,0
-519,0
-2144,0
h
Wheelbase
461,0
461,0
461,0
i
Chainstay length
-
-
-
j
Bottom bracket drop
73,0
73,0
73,0
k
Stack height
629,0
629,0
639,0
l
Reach
401,0
416,0
431,0
m
Standover height
406,0
446,0
486,0
x
Bottom bracket height
301,0
301,0
301,0
y
Front center
661,0
676,0
693,0
