BikeWise

Ghost LANAO Base 26" 2021

Women's Bike
MTB Cross Country
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
14,5 kg
Front travel
100mm

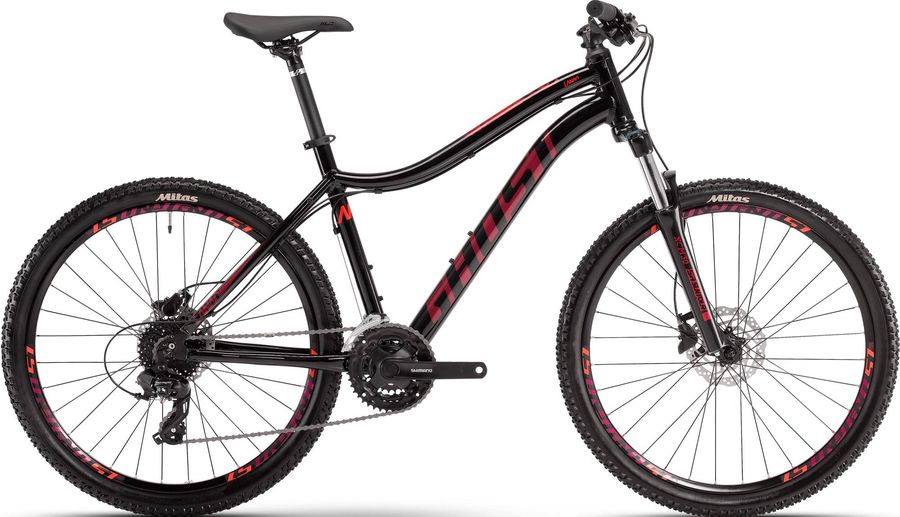

Ghost LANAO Base 26" 2021

About the Ghost LANAO Base 26" 2021

The Ghost LANAO Base 26" 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 14,5 kg.

Features

The Ghost LANAO Base 26" 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
GHOST MTB Dia. 31.8 mm
Saddle
DDK 258
Headset
14106
Seatpost
GHOST SP DC1 31.6 mm
Handlebar
GHOST Low Rizer MTB 700 mm Rise 15 mm Dia. 31.8 mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano FC-TY301 42-34-24
Front derailleur
Shimano Tourney FD-TY700-TS6
Cassette
Sunrace CSM400 12-32T 8-speed
Rear derailleur
Shimano Tourney RD-TX800 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Resin
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-TX800
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
LANAO AL
Front suspension
SR Suntour XCM
Wheels
Rims
Rodi Excalibur XC 559x19 mm 32H
Tires
Mitas Ocelot 26x2.10
Rear hub
Shimano FH-TX505 QR 135 mm
Front hub
Shimano HB-TX505 QR 100 mm

Geometry

Size XXS XS SM MD LG
a
Seat tube length
-
-
-
-
-
b
Seat tube angle
-
-
-
-
-
c
Top tube length
550,0
560,0
570,0
588,0
598,0
d
Head tube length
115,0
125,0
135,0
135,0
145,0
e
Head tube angle
-
-
-
-
-
f
Rake
1076,0
831,0
616,0
172,0
-478,0
g
Trail
1206,0
768,0
513,0
-190,0
-15678,0
h
Wheelbase
425,0
425,0
425,0
425,0
425,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
73,5
73,5
73,5
73,0
73,0
k
Stack height
575,0
585,0
595,0
594,0
607,0
l
Reach
377,0
385,0
390,0
407,0
415,0
m
Standover height
340,0
380,0
420,0
460,0
500,0
x
Bottom bracket height
269,0
269,0
269,0
270,0
270,0
y
Front center
607,0
617,0
627,0
642,0
652,0
