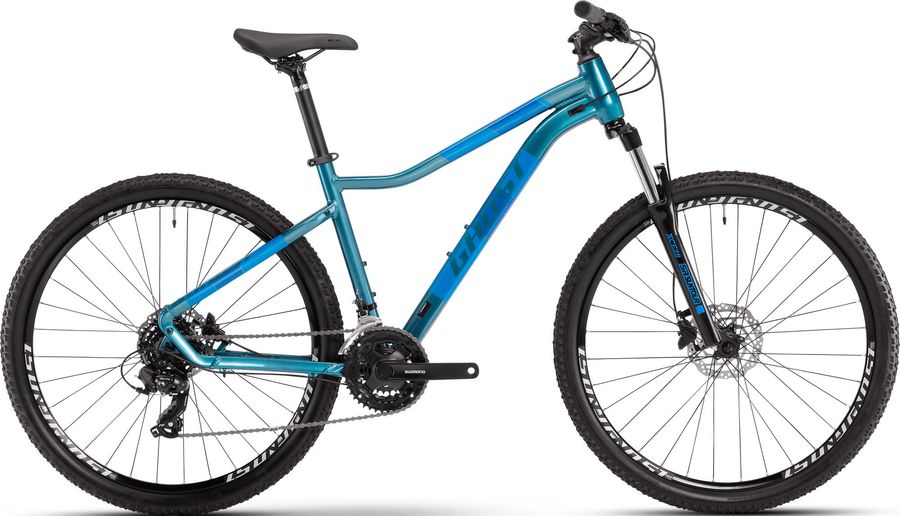

Ghost LANAO Base 27.5 2021
The Ghost LANAO Base 27.5 2021 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,7 kg
Front travel
100mm
About the Ghost LANAO Base 27.5 2021
The Ghost LANAO Base 27.5 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7). Its features include hydraulic disc brakes. The bike weighs approximately 14,7 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
GHOST MTB Dia. 31.8 mm
|
|---|---|
|
Saddle
|
DDK 258
|
|
Headset
|
14106
|
|
Seatpost
|
GHOST SP DC1 31.6 mm
|
|
Handlebar
|
GHOST Low Rizer light 720 mm Rise 15 mm 31.8 mm
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Crankset
|
Shimano FC-TY301 42-34-24
|
|---|---|
|
Front derailleur
|
Shimano Tourney FD-TY300
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Cassette
|
Shimano Altus CS-HG200-7
HG
|
|
12-32T |
|
|
Frame
|
LANAO AL
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
Rodi Excalibur XC 19
|
|---|---|
|
Tires
|
Mitas Ocelot 27x2.10
|
|
Rear hub
|
Shimano FH-TX505 QR 135 mm
|
|
Front hub
|
Shimano HB-TX505 QR 100 mm
|
Geometry
| Size | XS | SM | MD |
|---|---|---|---|
|
a
Seat tube length
|
680,0
|
680,0
|
680,0
|
|
b
Seat tube angle
|
-
|
-
|
-
|
|
c
Top tube length
|
536,0
|
561,0
|
581,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
-
|
-
|
-
|
|
f
Rake
|
250,0
|
-334,0
|
-714,0
|
|
g
Trail
|
-35,0
|
-3940,0
|
6128,0
|
|
h
Wheelbase
|
421,0
|
421,0
|
421,0
|
|
i
Chainstay length
|
-
|
-
|
-
|
|
j
Bottom bracket drop
|
73,5
|
73,5
|
73,5
|
|
k
Stack height
|
579,0
|
589,0
|
598,0
|
|
l
Reach
|
362,0
|
384,0
|
402,0
|
|
m
Standover height
|
351,0
|
391,0
|
431,0
|
|
x
Bottom bracket height
|
282,0
|
282,0
|
282,0
|
|
y
Front center
|
635,0
|
661,0
|
682,0
|
