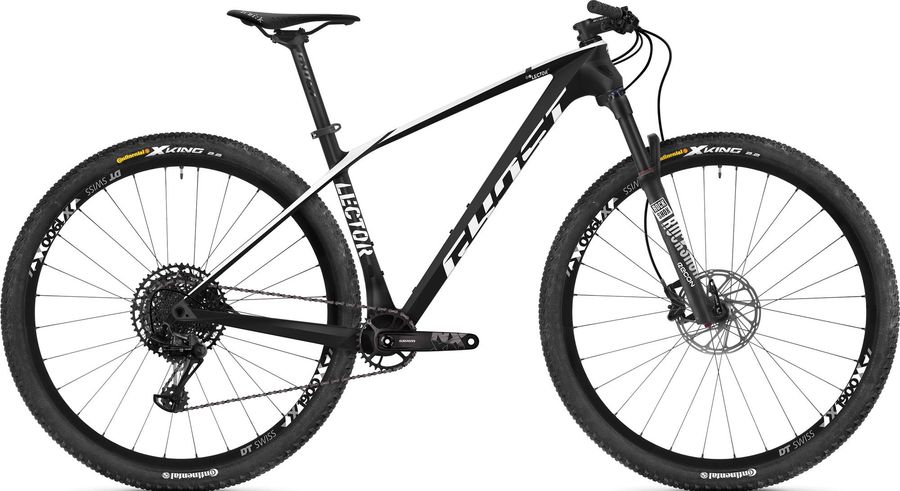

Ghost Lector 3.9 LC U 2019

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,8 kg
Front travel
100mm
Ghost Lector 3.9 LC U 2019

About the Ghost Lector 3.9 LC U 2019

The Ghost Lector 3.9 LC U 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 11,8 kg.

Features

The Ghost Lector 3.9 LC U 2019 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Fizik Antares R7
Headset
HS0001
Seatpost
Ground Fiftyone 31.6 mm
Handlebar
Ground Fiftyone 740 mm Dia. 31.8 mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM NX Eagle 32 DUB
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
LECTOR LC
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss X 1900 SPLINE® 29/25 mm, 15/100 TA
Tires
Continental X-King Perf. Pure Grip 29 x 2.2

Geometry

Size XS SM MD LG XL
a
Seat tube length
695,0
695,0
695,0
695,0
695,0
b
Seat tube angle
60,0º
60,0º
60,0º
60,0º
60,0º
c
Top tube length
587,0
602,0
617,0
632,0
643,0
d
Head tube length
95,5
95,5
105,5
115,5
125,5
e
Head tube angle
-
-
-
-
-
f
Rake
-88,0
-661,0
-794,0
-952,0
-1110,0
g
Trail
-1221,0
8474,0
4784,0
3319,0
2540,0
h
Wheelbase
436,0
436,0
436,0
436,0
436,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
73,0
73,0
73,0
73,0
73,0
k
Stack height
613,0
613,0
622,0
632,0
641,0
l
Reach
401,0
416,0
429,0
442,0
449,0
m
Standover height
386,0
426,0
466,0
506,0
546,0
x
Bottom bracket height
301,0
301,0
301,0
301,0
301,0
y
Front center
755,0
672,0
687,0
702,0
713,0
