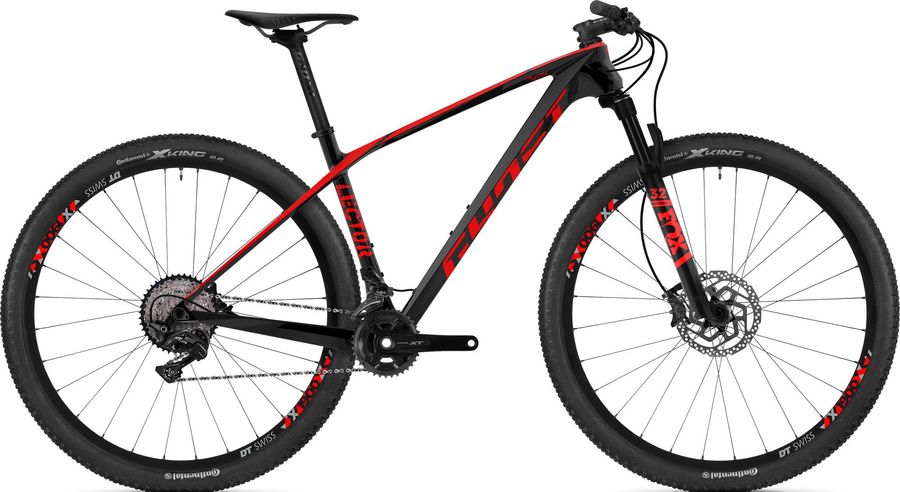

Ghost Lector 4.9 LC U 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,3 kg
Front travel
100mm
Ghost Lector 4.9 LC U 2019

About the Ghost Lector 4.9 LC U 2019

The Ghost Lector 4.9 LC U 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include boost 110 , hydraulic disc brakes, and remote lockout. The bike weighs approximately 11,3 kg.

Features

The Ghost Lector 4.9 LC U 2019 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Fizik Antares R7
Headset
HS0001
Seatpost
Ground Fiftyone 31.6 mm
Handlebar
Ground Fiftyone 740 mm Dia. 31.8 mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000 Hollowtech II 36-26
Front derailleur
Shimano XT FD-M8020 Side Swing
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
LECTOR LC
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
DT Swiss X 1900 SPLINE® 29/25 mm, 15/110 TA
Tires
Continental Cross King 29 x 2.2

Geometry

Size XS SM MD LG XL
a
Seat tube length
695,0
695,0
695,0
695,0
695,0
b
Seat tube angle
60,0º
60,0º
60,0º
60,0º
60,0º
c
Top tube length
587,0
602,0
617,0
632,0
643,0
d
Head tube length
95,5
95,5
105,5
115,5
125,5
e
Head tube angle
-
-
-
-
-
f
Rake
-88,0
-661,0
-794,0
-952,0
-1110,0
g
Trail
-1221,0
8474,0
4784,0
3319,0
2540,0
h
Wheelbase
436,0
436,0
436,0
436,0
436,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
73,0
73,0
73,0
73,0
73,0
k
Stack height
613,0
613,0
622,0
632,0
641,0
l
Reach
401,0
416,0
429,0
442,0
449,0
m
Standover height
386,0
426,0
466,0
506,0
546,0
x
Bottom bracket height
301,0
301,0
301,0
301,0
301,0
y
Front center
755,0
672,0
687,0
702,0
713,0
