Ghost LECTOR Essential 2020

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,1 kg
Front travel
100mm

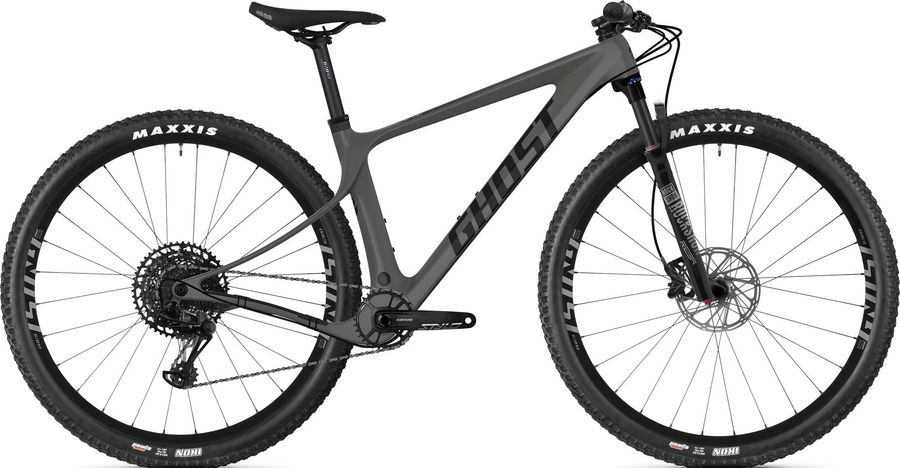

Ghost LECTOR Essential 2020

About the Ghost LECTOR Essential 2020

The Ghost LECTOR Essential 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 11,1 kg.

Features

The Ghost LECTOR Essential 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia SLR Adjustable
Seatpost
Ground Fiftyone Carbon 34.9 mm
Handlebar
Ground Fiftyone flat bar Dia. 31.8 mm 700 mm (XS) 720 mm (S) 740 mm (M-L) 760 mm (XL)
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Truvativ Stylo 6K 32T
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
LECTOR LC
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Rodi Wheelset 15 x 110 mm
Tires
Maxxis Ikon 3C MaxxSpeed 29 x 2.2

Geometry

Size XS SM MD LG XL
a
Seat tube length
680,0
680,0
680,0
680,0
680,0
b
Seat tube angle
65,0º
65,0º
65,0º
60,0º
60,0º
c
Top tube length
573,0
608,0
643,0
673,5
706,0
d
Head tube length
90,0
90,0
90,0
110,0
140,0
e
Head tube angle
-
-
-
-
-
f
Rake
294,0
-99,0
-524,0
-1049,0
-1403,0
g
Trail
11,0
-1318,0
-1,83420231985576e18
3285,0
2146,0
h
Wheelbase
421,0
421,0
421,0
421,0
421,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
73,7
73,7
73,7
73,7
73,7
k
Stack height
589,0
589,0
589,0
626,0
654,0
l
Reach
398,0
432,0
467,0
487,0
511,0
m
Standover height
384,0
408,0
432,0
456,0
480,0
x
Bottom bracket height
301,0
301,0
301,0
301,0
301,0
y
Front center
679,0
713,0
748,0
785,0
820,0
