Ghost LECTOR FS Essential 2021

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
107mm

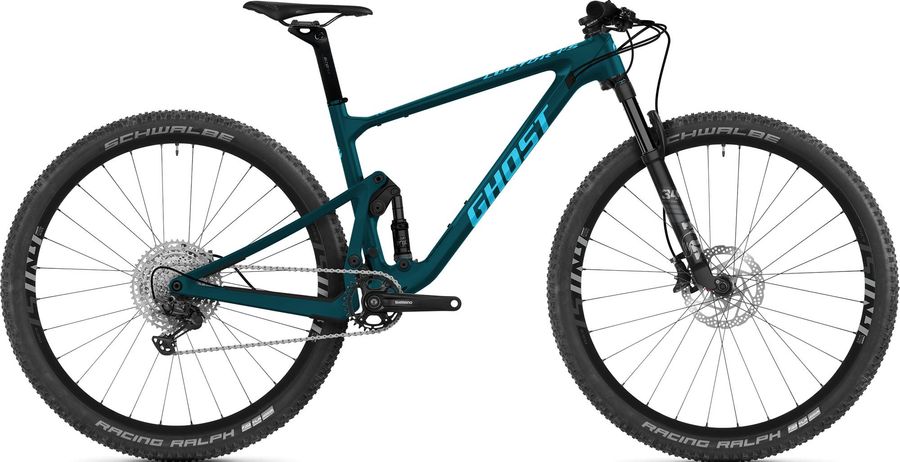

Ghost LECTOR FS Essential 2021

About the Ghost LECTOR FS Essential 2021

The Ghost LECTOR FS Essential 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Ghost LECTOR FS Essential 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia X3 Boost
Seatpost
Ground Fiftyone Carbon 34.9 mm
Handlebar
Ground Fiftyone flat bar Dia. 31.8 mm 700 mm (XS) 720 mm (S) 740 mm (M-L) 760 mm (XL)
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
Shimano FC-MT5101 32T
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
LECTOR FS LC
Rear suspension
Fox Float DPS Performance Elite
Front suspension
Fox 34 Float Performance SC
Wheels
Rims
Rodi Wheelset 15x110 mm
Tires
Schwalbe Racing Ralph Performance 29x2.25

Geometry

Size XS SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
513,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
576,0
603,0
650,0
669,0
701,0
d
Head tube length
90,0
90,0
100,0
120,0
140,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
52,0
55,0
52,0
54,0
55,0
g
Trail
95,0
92,0
95,0
93,0
92,0
h
Wheelbase
1130,0
1161,0
1214,0
1241,0
1275,0
i
Chainstay length
435,0
435,0
440,0
440,0
440,0
j
Bottom bracket drop
40,6
40,6
32,6
32,6
32,6
k
Stack height
577,0
575,0
601,0
618,0
636,0
l
Reach
424,0
453,0
489,0
507,0
533,0
m
Standover height
710,0
730,0
760,0
770,0
780,0
x
Bottom bracket height
334,0
334,0
342,0
342,0
342,0
y
Front center
698,0
729,0
776,0
803,0
837,0
