BikeWise

Ghost LECTOR FS Universal 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
107mm

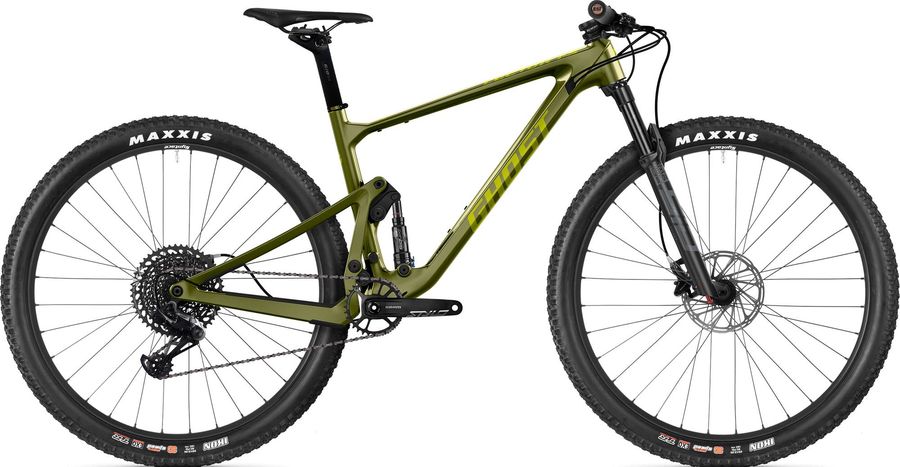

Ghost LECTOR FS Universal 2021

About the Ghost LECTOR FS Universal 2021

The Ghost LECTOR FS Universal 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes.

Features

The Ghost LECTOR FS Universal 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia SLR Boost
Seatpost
Ground Fiftyone Carbon 34.9 mm
Handlebar
Ground Fiftyone flat bar Dia. 31.8 mm 700 mm (XS) 720 mm (S) 740 mm (M-L) 760 mm (XL)
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
Truvativ Stylo 6K 32T
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
LECTOR FS LC
Front suspension
RockShox SID Select+ DebonAir 1703 g
Color
Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal
Damper type
Charger 2 RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SELP-C1
Name
SID Select+
Spring
DebonAir
Travel (mm)
100mm, 110mm, 120mm
Upper tube type
35mm tapered wall aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1703
Wheel size
29"
Rear suspension
RockShox SIDluxe Select+ 236 g
Body eyelet
No Bushing, No Bushing - 90 Deg Rotation, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-SELP-A1
Name
SIDLuxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
236
Wheels
Rims
Syntace W28i Wheelset 15x110 mm
Tires
Maxxis Ikon 3C MaxxSpeed Exo 29x2.35

Geometry

Size XS SM MD LG XL
a
Seat tube length
417,0
441,0
465,0
489,0
513,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
75,5º
c
Top tube length
576,0
603,0
650,0
669,0
701,0
d
Head tube length
90,0
90,0
100,0
120,0
140,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
52,0
55,0
52,0
54,0
55,0
g
Trail
95,0
92,0
95,0
93,0
92,0
h
Wheelbase
1130,0
1161,0
1214,0
1241,0
1275,0
i
Chainstay length
435,0
435,0
440,0
440,0
440,0
j
Bottom bracket drop
40,6
40,6
32,6
32,6
32,6
k
Stack height
577,0
575,0
601,0
618,0
636,0
l
Reach
424,0
453,0
489,0
507,0
533,0
m
Standover height
710,0
730,0
760,0
770,0
780,0
x
Bottom bracket height
334,0
334,0
342,0
342,0
342,0
y
Front center
698,0
729,0
776,0
803,0
837,0
