Ghost Lector WCR.9 2019

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,4 kg
Front travel
100mm

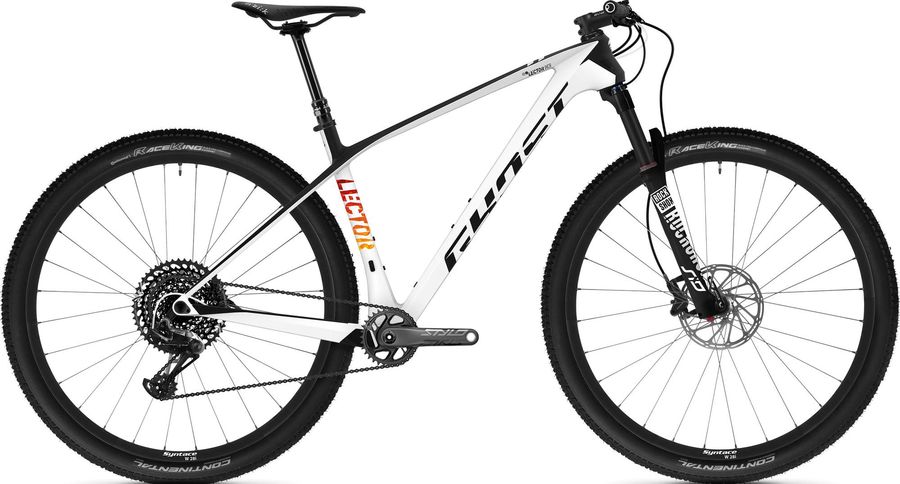

Ghost Lector WCR.9 2019

About the Ghost Lector WCR.9 2019

The Ghost Lector WCR.9 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 10,4 kg.

Features

The Ghost Lector WCR.9 2019 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Fizik Antares R7
Headset
16012
Seatpost
Rock Shox Reverb Stealth 31.6 mm
Handlebar
Ground Fiftyone Pro Team Carbon 740 mm Dia. 31.8 mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
Truvativ Stylo Carbon Eagle X-Sync 32T
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
LECTOR LC
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
Syntace W28i Wheelset 15x110 mm
Tires
Continental Race King 2.2 29er Race Sport

Geometry

Size XS SM MD LG XL
a
Seat tube length
695,0
695,0
695,0
695,0
695,0
b
Seat tube angle
60,0º
60,0º
60,0º
60,0º
60,0º
c
Top tube length
587,0
602,0
617,0
632,0
643,0
d
Head tube length
95,5
95,5
105,5
115,5
125,5
e
Head tube angle
-
-
-
-
-
f
Rake
-136,0
-661,0
-794,0
-952,0
-1110,0
g
Trail
-1355,0
8474,0
4784,0
3319,0
2540,0
h
Wheelbase
436,0
436,0
436,0
436,0
436,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
73,0
73,0
73,0
73,0
73,0
k
Stack height
613,0
613,0
622,0
632,0
641,0
l
Reach
401,0
416,0
429,0
442,0
449,0
m
Standover height
386,0
426,0
466,0
506,0
546,0
x
Bottom bracket height
301,0
301,0
301,0
301,0
301,0
y
Front center
620,0
672,0
687,0
702,0
713,0
