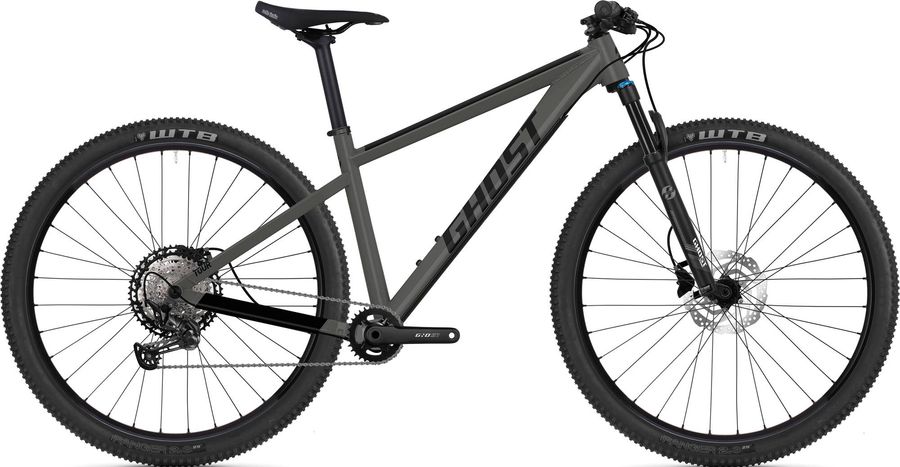

Ghost NIRVANA TOUR Essential 2020

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,6 kg
Front travel
80mm
Ghost NIRVANA TOUR Essential 2020

About the Ghost NIRVANA TOUR Essential 2020

The Ghost NIRVANA TOUR Essential 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,6 kg.

Features

The Ghost NIRVANA TOUR Essential 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia Adjustable
Seatpost
Ground Fiftyone 34.9 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 0/680 mm (XS) 0/700 mm (S) 20/720 mm (M) 27/740 mm (L) 40/760 mm (XL)
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Samox 32T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Nirvana AL
Front suspension
X-Fusion RC32
Wheels
Rims
Rodi Tryp 584x25 32H (XS-S) 622x25 32H (M-XL)
Tires
WTB Ranger 27.5 x 2.3 (XS-S) 29 x 2.3 (M-XL)
Rear hub
Fastace DR2116B 12 x 148 mm
Front hub
Fastace DA201-F 15 x 110 mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
675,0
675,0
675,0
675,0
675,0
b
Seat tube angle
64,5º
64,5º
84,0º
79,0º
74,0º
c
Top tube length
565,0
595,0
615,0
648,0
680,0
d
Head tube length
100,0
100,0
100,0
120,0
140,0
e
Head tube angle
-
-
-
-
-
f
Rake
313,0
-104,0
-509,0
-874,0
-1229,0
g
Trail
68,0
-1216,0
-16872,0
4775,0
2606,0
h
Wheelbase
408,0
408,0
428,0
428,0
428,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
74,0
74,0
74,0
74,0
74,0
k
Stack height
575,0
612,0
646,0
659,0
673,0
l
Reach
401,0
420,0
431,0
460,0
488,0
m
Standover height
396,0
420,0
444,0
468,0
492,0
x
Bottom bracket height
281,0
281,0
300,0
300,0
300,0
y
Front center
656,0
689,0
716,0
752,0
788,0
