BikeWise

Ghost NIRVANA Tour Universal 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,4 kg
Front travel
100mm

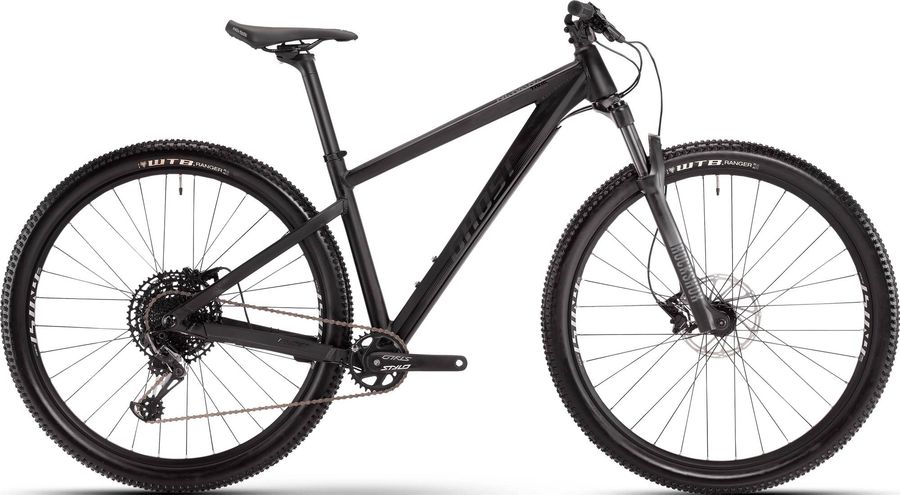

Ghost NIRVANA Tour Universal 2021

About the Ghost NIRVANA Tour Universal 2021

The Ghost NIRVANA Tour Universal 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,4 kg.

Features

The Ghost NIRVANA Tour Universal 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia Adjustable
Seatpost
GHOST SP FG101 34.9 mm
Handlebar
Ground Fiftyone Dia. 31.8 mm 0/680 mm (XS) 0/700 mm (S) 20/720 mm (M) 27/740 mm (L) 40/760 mm (XL)
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Truvativ Stylo 6K 32T
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Nirvana AL
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Rodi Tryp 584x25 (XS-S) 622x25 (M-XL) 32H
Tires
WTB Ranger 27.5x2.3 (XS-S) 29x2.3 (M-XL)
Rear hub
Fastace DA201-R 12x148 mm
Front hub
Fastace DA201-F 15x110 mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
675,0
675,0
675,0
675,0
675,0
b
Seat tube angle
64,5º
64,5º
84,0º
79,0º
74,0º
c
Top tube length
565,0
595,0
615,0
648,0
680,0
d
Head tube length
100,0
100,0
100,0
120,0
140,0
e
Head tube angle
-
-
-
-
-
f
Rake
313,0
-104,0
-509,0
-874,0
-1229,0
g
Trail
68,0
-1216,0
-16872,0
4775,0
2606,0
h
Wheelbase
408,0
408,0
428,0
428,0
428,0
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
74,0
74,0
74,0
74,0
74,0
k
Stack height
575,0
612,0
646,0
659,0
673,0
l
Reach
401,0
420,0
431,0
460,0
488,0
m
Standover height
396,0
420,0
444,0
468,0
492,0
x
Bottom bracket height
281,0
281,0
300,0
300,0
300,0
y
Front center
656,0
689,0
716,0
752,0
788,0
