Ghost Nirvana Tour Universal 2022

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

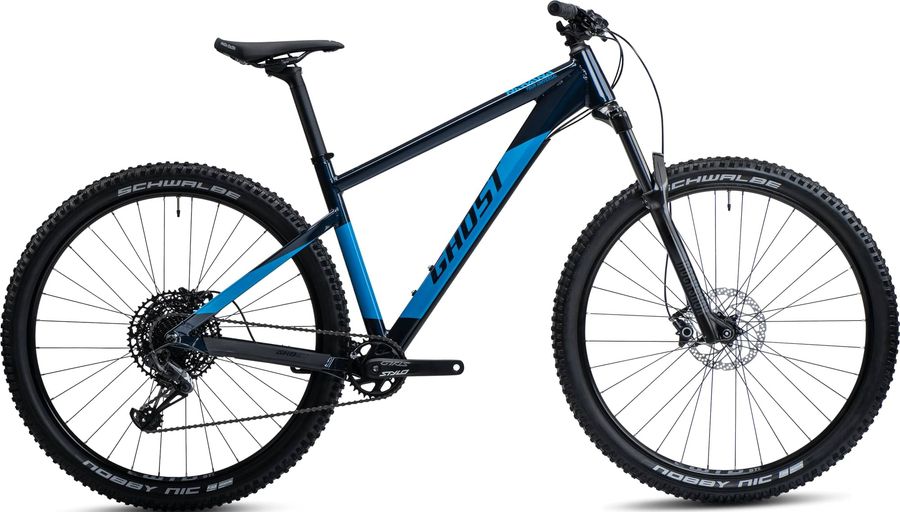

Ghost Nirvana Tour Universal 2022

About the Ghost Nirvana Tour Universal 2022

The Ghost Nirvana Tour Universal 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Ghost Nirvana Tour Universal 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Ground Fiftyone Dia. 31.8 mm
Saddle
Selle Italia Adjustable
Headset
Strummer semi-integrated
Seatpost
GND 51 34.9 mm
Handlebar
Ground Fiftyone Race Dia. 31.8 mm 0/700 mm (XS/S) 20/720 mm (M) 27/740 mm (L) 40/760 mm (XL)
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K 32T
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Nirvana AL
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i25
Tires
Schwalbe Nobby Nic Performance 2.35
Rear hub
Shimano FH-MT410-B 12x148 mm
Front hub
Shimano HB-MT400-B 15x110 mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
-
-
-
-
-
b
Seat tube angle
-
-
-
-
-
c
Top tube length
-
-
-
-
-
d
Head tube length
44,0
44,0
44,0
44,0
44,0
e
Head tube angle
-
-
-
-
-
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
-
-
-
-
-
i
Chainstay length
-
-
-
-
-
j
Bottom bracket drop
-
-
-
-
-
k
Stack height
-
-
-
-
-
l
Reach
-
-
-
-
-
m
Standover height
-
-
-
-
-
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
