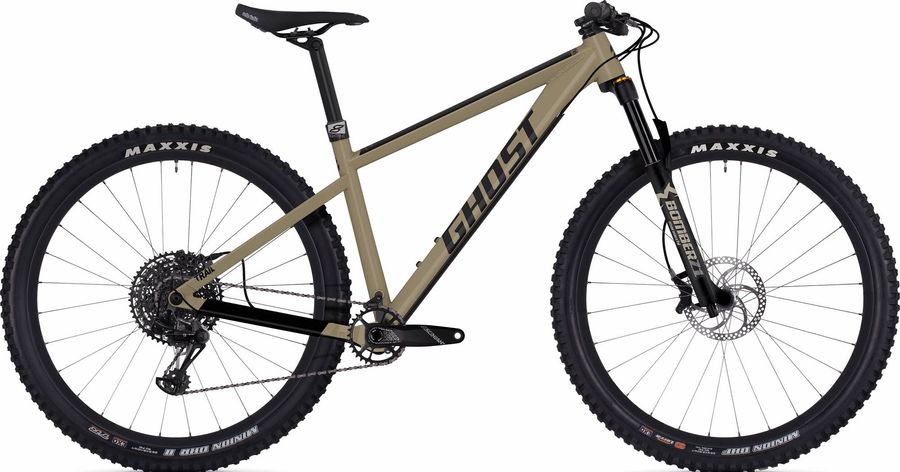

Ghost NIRVANA TRAIL Universal 2020

MTB Trail

Groupset

SRAM GX Eagle

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Front travel

140mm

About the Ghost NIRVANA TRAIL Universal 2020

The Ghost NIRVANA TRAIL Universal 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 e hydraulic disc brakes.

Features

The Ghost NIRVANA TRAIL Universal 2020 has 2 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Components
Steam	Ground Fiftyone Dia. 31.8 mm
Saddle	Selle Italia Adjustable
Seatpost	Eightpins hydraulic 34.9 mm
Handlebar	Ground Fiftyone Dia. 31.8 mm 20/720 mm (S) 20/740 mm (M) 20/760 (L) 40/780 mm (XL)
Brakes	Formula Cura 4

Drivetrain
Crankset	Truvativ Descendant 6K Eagle X-Sync 32T
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s
Cassette	SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete Black Cog sizes 11-50t:11,13,15,17,19,22,25,28,32,36,42,50 Gearing 11-50t Model CS-PG-1230-A1 Name PG-1230 Eagle Cassette Speed 12s Technology cassete PG Weight 615

Frameset
Frame	Nirvana AL
Front suspension	Marzocchi Bomber Z1

Wheels
Rims	Syntace V30 15x110 mm
Tires	Maxxis Minion DHF 3C MaxxTerra Exo 27.5 x 2.5 (S) 29 x 2.5 (M-XL)

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

GX Eagle 1 × 12

Crank: 32T

Cassette: 11-50T

Speeds: 12s

Gearing

Average

0,65

Average

2,91

Compared to similar bikes, the Ghost NIRVANA TRAIL Universal 2020 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	660,0	660,0	660,0	660,0
b Seat tube angle	58,0º	71,0º	66,0º	66,0º
c Top tube length	585,0	605,0	634,0	664,0
d Head tube length	100,0	100,0	140,0	160,0
e Head tube angle	-	-	-	-
f Rake	-336,0	-731,0	-770,0	-1453,0
g Trail	-3951,0	7782,0	8062,0	1790,0
h Wheelbase	410,0	430,0	430,0	430,0
i Chainstay length	-	-	-	-
j Bottom bracket drop	74,6	74,6	74,6	74,6
k Stack height	623,0	650,0	682,0	700,0
l Reach	432,0	446,0	467,0	495,0
m Standover height	422,0	446,0	470,0	494,0
x Bottom bracket height	281,0	281,0	281,0	281,0
y Front center	724,0	753,0	791,0	827,0
