Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
170mm
Rear travel
150mm

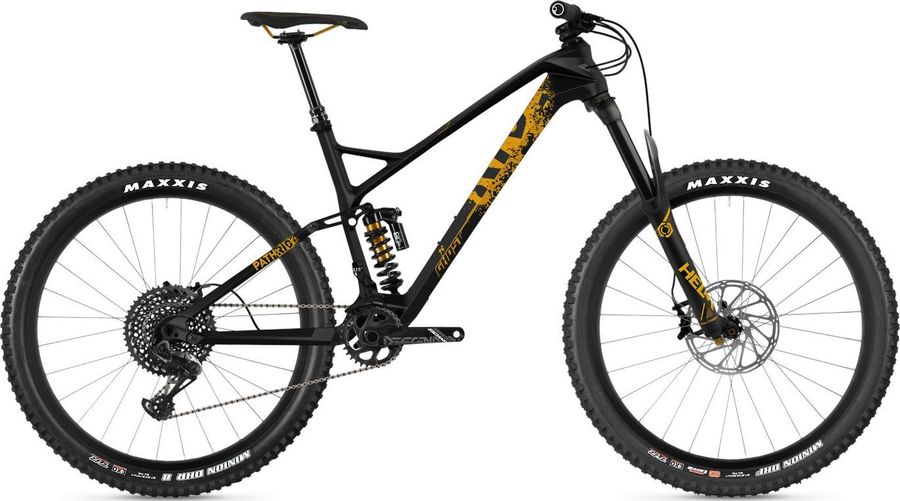

About the Ghost Pathriot 8.7 UC 2018
The Ghost Pathriot 8.7 UC 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon
|
|---|
|
Steam
|
Syntace Megaforce2, 31.8mm clamp, 50mm length
|
|---|---|
|
Brakes
|
SRAM
|
|
Saddle
|
SDG Fly Mountain
|
|
Headset
|
ZS44/ZS56
|
|
Seatpost
|
RockShox Reverb Stealth dropper
|
|
Handlebar
|
Syntace Vector, 780mm width, 20mm rise, 31.8mm clamp
|
|
Brake lever
|
SRAM
|
|
Crankset
|
SRAM Descendant, 170mm length
|
|---|---|
|
Shifter
|
SRAM GX Eagle, 12-speed
|
|
Chain guide
|
e*thirteen TRS+
|
|
Bottom bracket
|
PressFit 92
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Front suspension
|
Cane Creek Helm
|
|---|---|
|
Frame
|
Carbon Fiber
|
|
Rear suspension
|
Cane Creek DB Inline
|
|
Rims
|
Ghost Carbon
|
|---|---|
|
Tires
|
Front: Schwalbe Magic Mary, 27.5" x 2.35", Rear: Schwalbe Rock Razor, 27.5" x 2.35"
|
|
Rear hub
|
Ghost Light, 15x110mm Boost front, 12x142mm rear
|
|
Front hub
|
Ghost Light, 15x110mm Boost front, 12x142mm rear
|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
440,0
|
460,0
|
480,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
590,0
|
610,0
|
630,0
|
|
d
Head tube length
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
40,0
|
41,0
|
40,0
|
|
g
Trail
|
122,0
|
121,0
|
122,0
|
|
h
Wheelbase
|
1186,0
|
1208,0
|
1229,0
|
|
i
Chainstay length
|
431,0
|
431,0
|
431,0
|
|
j
Bottom bracket drop
|
14,0
|
14,0
|
14,0
|
|
k
Stack height
|
622,0
|
631,0
|
640,0
|
|
l
Reach
|
436,0
|
453,0
|
471,0
|
|
m
Standover height
|
738,0
|
758,0
|
778,0
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
755,0
|
777,0
|
798,0
|
